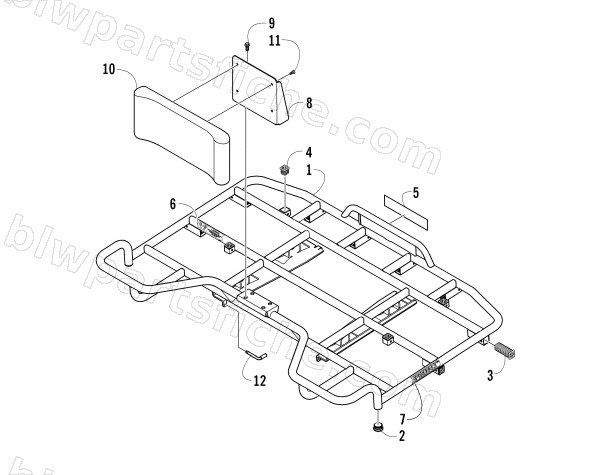

REAR RACK AND BACKREST ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0436-798 | KIT,REAR RACK-TRV | 1 | $439.95 | |
| 2 | 1441-049 | PLUG,PLASTIC(1.00" Round Tube) | 1 | $1.78 | |
| 3 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 4 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 5 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 | |
| 6 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 7 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 8 | 0541-486 | BRACKET,BACK REST-PTD BLK | 1 | $69.95 | |
| 9 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 0506-686 | PAD, BACK REST | 1 | $156.95 | |
| 11 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 12 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 |
