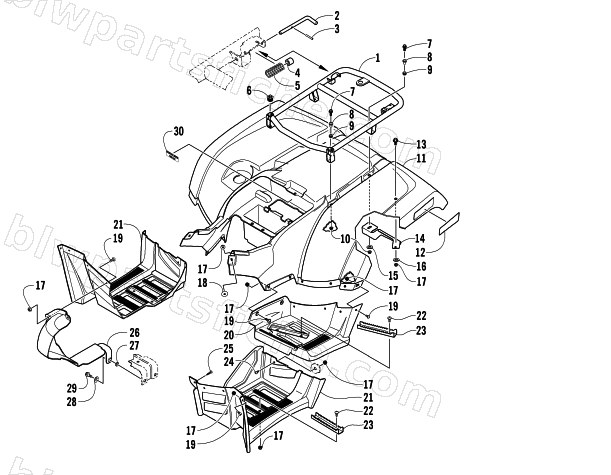

2007 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — REAR BODY PANEL ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-221 | RACK,REAR FRAME-ASSY (SHORT) | 1 | $272.95 | |
| 2 | 0541-504 | PIN,MRP-ASSY | 1 | $20.63 | |
| 6 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 7 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 8 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 9 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 10 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 11 | 0518-081 | FENDER,REAR MARSH-ASSY(TRV) | 1 | $1,112.95 | |
| 11 | 0518-079 | FENDER,REAR RED-ASSY(TRV) | 1 | $395.95 | |
| 12 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 12 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 13 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 14 | 2506-092 | BRACKET,REAR FENDER SUPPORT-RH-PAINTED | 1 | $26.95 | |
| 14 | 2506-093 | BRACKET,REAR FENDER SUPPORT-LH-PAINTED | 1 | $26.95 | |
| 15 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 16 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 18 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 19 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 20 | 2406-042 | FOOTWELL,REAR-RH | 1 | $105.95 | |
| 20 | 2406-043 | FOOTWELL,REAR-LH | 1 | $105.95 | |
| 21 | 2506-193 | FOOTWELL,RIGHT ROUTING | 1 | $129.95 | |
| 21 | 2406-471 | R/B 8506-667 | 1 | $114.95 | |
| 22 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 23 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 24 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 25 | 0423-719 | SCREW,SELF TAP-PHPNH12-14X3/4 AB BLK | 1 | $0.40 | |
| 26 | 2406-531 | PANEL, SPLASH | 1 | $100.95 | |
| 27 | 0405-261 | BUSHING,SPLASH PANEL | 1 | $13.73 | |
| 28 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 29 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 30 | 1411-508 | DECAL,STORAGE(700 DIESEL) | 1 | $17.87 |
