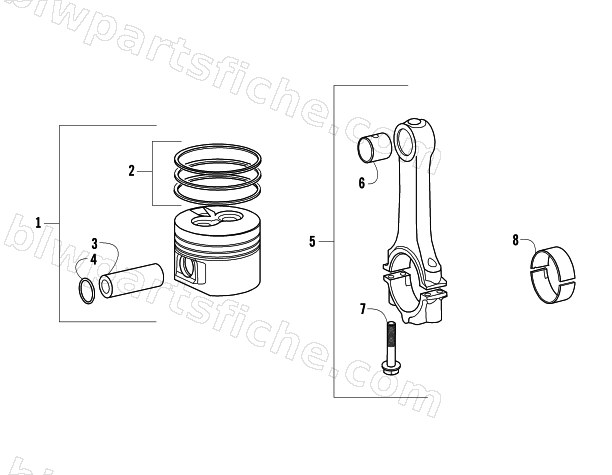

2007 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — PISTON SET AND CONNECTING ROD ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-026 | PISTON SET STD | 1 | $405.95 | |
| 1 | 3206-027 | PISTON SET +0,50 | 1 | $405.95 | |
| 1 | 3206-028 | PISTON SET +1,00 | 1 | $405.95 | |
| 2 | 3206-023 | RING SET STD. | 1 | $252.95 | |
| 2 | 3206-024 | RING SET +0,50 | 1 | $196.95 | |
| 2 | 3206-025 | RING SET +1,00 | 1 | $196.95 | |
| 3 | 3206-030 | GUDGEON PIN (DIAM.20) | 1 | $64.95 | |
| 4 | 3206-031 | CIRCLIP | 1 | $2.88 | |
| 5 | 3206-035 | CONNECTING ROD | 1 | $573.95 | |
| 6 | 3206-029 | SMALL END BUSHING | 1 | $30.95 | |
| 7 | 3206-036 | BOLT M 8 X 1 X 42 | 1 | $12.35 | |
| 8 | 3206-032 | BIG END BUSHING STD. | 1 | $90.95 | |
| 8 | 3206-033 | BIG END BUSHING -0,25 | 1 | $64.95 | |
| 8 | 3206-034 | BIG END BUSHING -0,50 | 1 | $118.95 |
