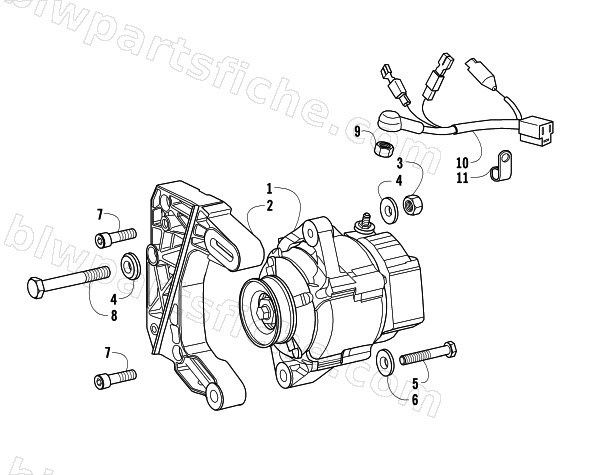

EXTERNAL ALTERNATOR ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-303 | EXTERNAL VOLT.ALTERNATOR 12V | 1 | $1,356.95 | |
| 2 | 3206-300 | ALTERNATOR SUPPORT | 1 | $163.95 | |
| 3 | 3206-142 | NUT M 10 | 1 | $2.61 | |
| 4 | 3206-298 | WASHER DIAM.10,5 | 1 | $6.34 | |
| 5 | 3206-301 | BOLT M 8 X 1,25 X 50 | 1 | $3.57 | |
| 6 | 3206-302 | WASHER DIAM. 8,4 | 1 | $16.49 | |
| 7 | 3206-266 | SCREW M 8 X 30 | 1 | $3.02 | |
| 8 | 3206-299 | BOLT M 10 X 75 | 1 | $4.54 | |
| 9 | 3206-137 | NUT M 6 | 1 | $1.50 | |
| 10 | 3206-324 | WIRE W/ DIODE 12V | 1 | $79.95 | |
| 11 | 3206-325 | CLAMP | 1 | $17.87 |
