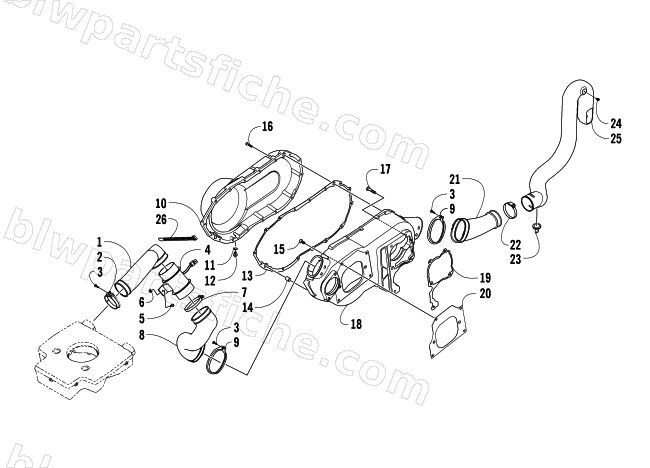

2007 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — CASE/BELT COOLING ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-132 | DUCT,COOLING-BELT IN | 1 | $58.95 | |
| 2 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 3 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 4 | 0413-141 | FAN,BELT COOLING | 1 | $66.95 | |
| 5 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 6 | 8424-502 | NUT,HEX-FLG M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 7 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 8 | 0413-133 | BOOT,COOLING-BELT IN | 1 | $79.95 | |
| 9 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 10 | 1502-157 | COVER,CLUTCH-BLACK | 1 | $264.95 | |
| 11 | 0830-013 | WASHER,CRUSH, 8 x 16 x 1 | 1 | $1.09 | |
| 12 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 13 | 1402-528 | GASKET,V-BELT COVER | 1 | $64.95 | |
| 14 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 15 | 8473-820 | R/B 8472-820 | 1 | $1.69 | |
| 16 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 17 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 18 | 1402-527 | COVER,CLUTCH-MACHINED | 1 | $457.95 | |
| 19 | 1402-526 | GASKET,GEARBOX | 1 | $15.11 | |
| 20 | 1402-524 | GASKET,CLUTCH COVER | 1 | $5.51 | |
| 21 | 0413-134 | BOOT,COOLING-BELT OUT | 1 | $47.95 | |
