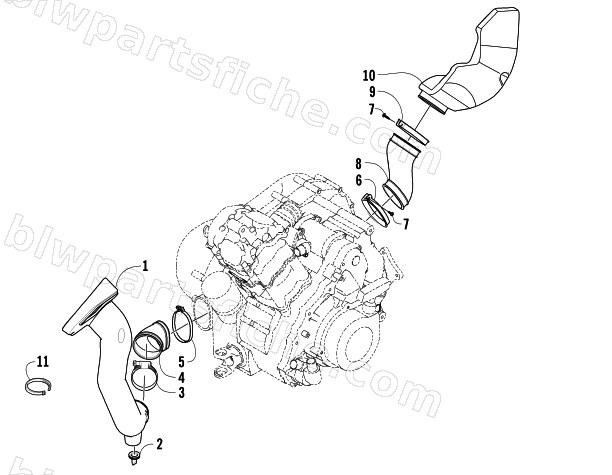

CASE/BELT COOLING ASSEMBLY
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-115 | DUCT,COOLING-BELT | 1 | $58.95 | |
| 2 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 3 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 4 | 0413-160 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 5 | 3402-449 | CLAMP, DUCT FRONT | 1 | $20.63 | |
| 6 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 7 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 8 | 0413-097 | BOOT,AIR OUT | 1 | $23.39 | |
| 9 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 10 | 0413-153 | DUCT,AIR-OUT | 1 | $56.95 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
