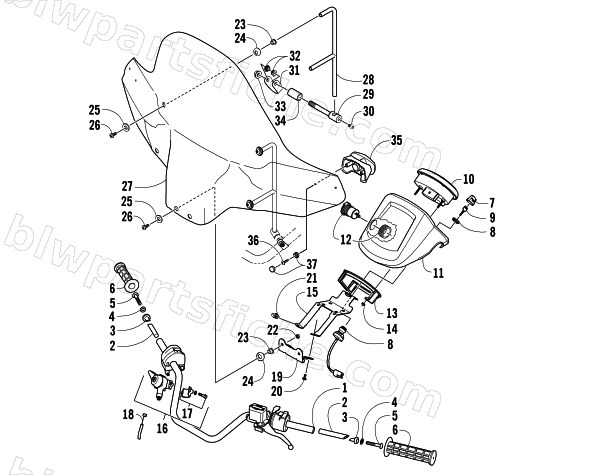

2007 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV LE — HANDLEBAR AND WINDSHIELD ASSEMBLY
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0436-948 | ASSEMBLY,WINDSHIELD CLEAR-W/BLACK | 1 | $759.95 | |
| 0 | 0453-412 | INSTR,KIT 0436-944/-945/-946/-947 | 1 | $2.61 | |
| 0 | 1441-063 | WRENCH,ALLEN - 5/32" | 1 | $4.26 | |
| 1 | 0505-476 | TUBE,HANDLE BAR-BLACK | 1 | $47.95 | |
| 2 | 0405-218 | PLUG,HANDLEBAR | 1 | $20.63 | |
| 3 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 6 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 7 | 0409-013 | COVER,KEY | 1 | $6.34 | |
| 8 | 0430-036 | SWITCH, IGN | 1 | $100.95 | |
| 9 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 9 | 3409-011 | KEY, BLANK ( D SERIES) | 1 | $30.95 | |
| 9 | 3409-012 | KEY, BLANK (E SERIES) | 1 | $30.95 | |
| 9 | 3409-013 | KEY, BLANK (F SERIES) | 1 | $30.95 | |
| 10 | 0520-025 | GAUGE,LCD (07 650H1 TRV) | 1 | $525.95 | |
| 11 | 0405-191 | POD,INSTRUMENT-BLACK(AC) | 1 | $97.95 | |
| 12 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 13 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 14 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 15 | 1506-578 | BRACKET,GAUGE-BLACK | 1 | $30.95 | |
| 16 | 0502-527 | LEVER, DIFFERENTIAL LOCK - ASSEMBLY | 1 | $136.95 | |
| 18 | 0487-050 | CABLE,DIFF LOCK | 1 | $39.95 | |
| 19 | 0541-300 | BRACKET,WINDSHIELD MOUNT-BLACK | 1 | $59.95 | |
| 20 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 21 | 0423-549 | R/B 0423-577 | 1 | $2.95 | |
| 22 | 0423-531 | NUT,HEX SL 1/4-20 Z&C | 1 | $0.81 | |
| 23 | 1441-054 | GROMMET,CAP | 1 | $8.21 | |
| 24 | 1441-062 | GROMMET,RUBBER | 1 | $11.95 | |
| 25 | 0423-528 | WASHER,FLAT(STD)1/4 DIA Z&C | 1 | $0.55 | |
| 26 | 0423-527 | SCREW,MACH-PHPNH 1/4-20X1.00(RB0624-271) | 1 | $0.75 | |
| 27 | 1441-563 | WINDSHIELD,CLEAR W/BLACK-MIRROR | 1 | $224.95 | |
| 28 | 1441-535 | ROD,LONG SUPPORT-WINDSHIELD | 1 | $35.95 | |
| 29 | 1441-051 | BOLT,MAIN-LONG | 1 | $12.35 | |
| 30 | 0423-529 | SCREW,MACH-HSBH 1/4-20X.375 BLK | 1 | $0.45 | |
| 31 | 1441-053 | R/B 1436-055 | 1 | $21.95 | |
| 32 | 1441-055 | SPACER,CLAMP | 1 | $5.95 | |
| 33 | 0423-530 | NUT,HEX SL 3/8-16 Z&BLK | 1 | $1.09 | |
| 34 | 1441-052 | SPACER | 1 | $20.63 | |
| 35 | 4639-463 | KIT, MIRROR W/WINDSHIELD MOUNT(EA) | 1 | $33.95 | |
| 36 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 37 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 |
