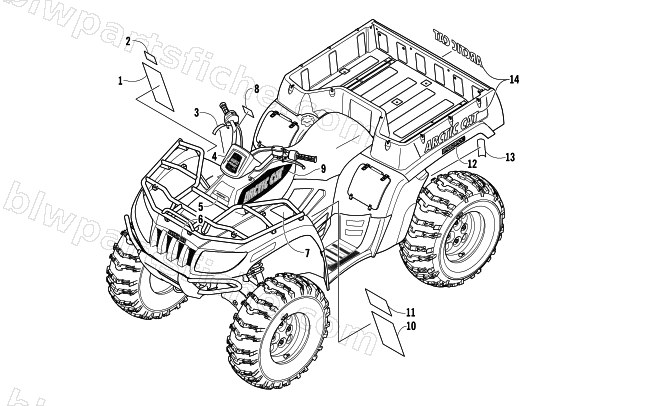

2007 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 TBX — DECALS
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 2 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 3 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 4 | 1411-378 | DECAL,GRAPHIC-POD(650 H1-MARSH GREEN) | 1 | $16.49 | |
| 4 | 1411-376 | DECAL,GRAPHIC-POD(650 H1-RED) | 1 | $18.95 | |
| 5 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 6 | 0411-839 | DECAL,GRAPHIC-FRONT(MARSH GREEN) | 1 | $148.95 | |
| 6 | 0411-840 | DECAL,GRAPHIC-FRONT(RED) | 1 | $30.95 | |
| 7 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 8 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 9 | 1411-358 | DECAL,GRAPHIC-SIDE UPPER RH-GREEN | 1 | $26.95 | |
| 9 | 1411-359 | DECAL,GRAPHIC-SIDE UPPER LH-GREEN | 1 | $26.95 | |
| 9 | 1411-356 | DECAL,GRAPHIC-SIDE UPPER RH-RED | 1 | $30.95 | |
| 9 | 1411-357 | DECAL,GRAPHIC-SIDE UPPER LH-RED | 1 | $30.95 | |
| 10 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 11 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 12 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 13 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 14 | 1411-157 | DECAL,ARCTIC CAT-BOX | 1 | $82.95 |
