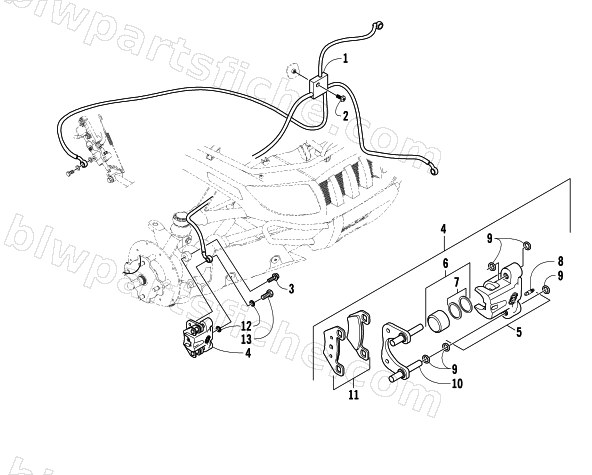

2007 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS — HYDRAULIC BRAKE ASSEMBLY
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-015 | HOSE,BRAKE ASSEMBLY | 1 | $390.95 | |
| 2 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 3 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 4 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 4 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 5 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 5 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 6 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 7 | 0502-607 | SET,SEALS-CALIPER (FC) | 1 | $30.95 | |
| 8 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 9 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 10 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 11 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 12 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 13 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 |
