2007 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS LE — MAGNETO ASSEMBLY

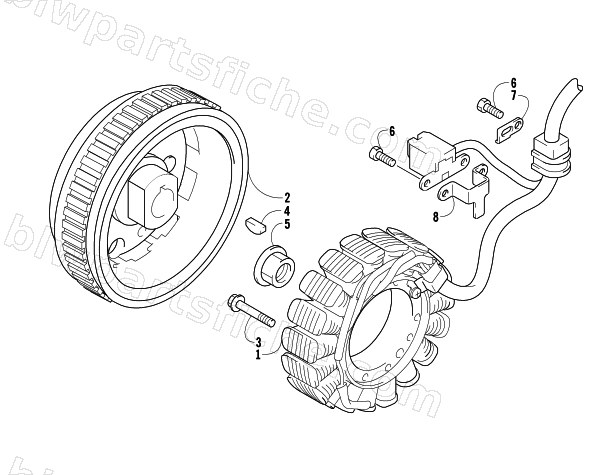

2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0802-037 | STATOR-LAYOUT (KOKUSAN) | 1 | $737.95 | |
| 2 | 0802-036 | ROTOR/FLYWHEEL-LAYOUT (KOKUSAN) | 1 | $509.95 | |
| 3 | 0826-102 | SCREW,TSPNH M6X1X30-W/THDLOC | 1 | $1.78 | |
| 4 | 0829-012 | KEY, MAGNETO | 1 | $3.30 | |
| 5 | 0827-014 | NUT,MACH-HEX FLANGE M16X1.5 | 1 | $3.02 | |
| 6 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 0802-015 | CLAMP,STATOR ASSY (NO. 1) | 1 | $4.40 | |
| 8 | 0802-016 | CLAMP,STATOR ASSY (NO. 2) | 1 | $12.95 |
