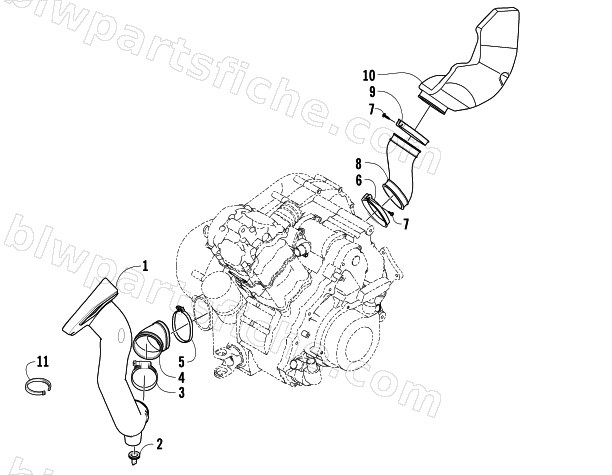

2007 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS LE — CASE/BELT COOLING ASSEMBLY
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-115 | DUCT,COOLING-BELT | 1 | $58.95 | |
| 2 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 3 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 4 | 0413-160 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 5 | 3402-449 | CLAMP, DUCT FRONT | 1 | $20.63 | |
| 6 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 7 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 8 | 0413-097 | BOOT,AIR OUT | 1 | $23.39 | |
| 9 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 10 | 0413-153 | DUCT,AIR-OUT | 1 | $56.95 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
