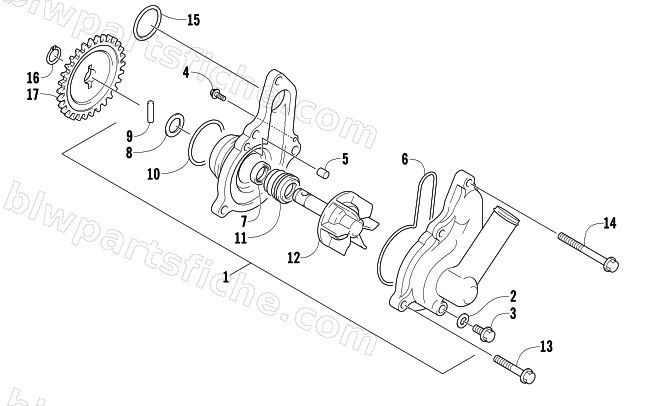

WATER PUMP ASSEMBLY
2007 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3413-042 | PUMP ASSY.,WATER | 1 | $316.95 | |
| 2 | 3406-141 | GASKET | 1 | $3.95 | |
| 3 | 3423-769 | BOLT | 1 | $4.95 | |
| 4 | 3423-770 | SCREW | 1 | $3.71 | |
| 5 | 3423-771 | PIN | 1 | $5.92 | |
| 6 | 3406-142 | O RING | 1 | $25.95 | |
| 7 | 3406-143 | OIL SEAL | 1 | $26.95 | |
| 8 | 3423-772 | WASHER | 1 | $2.95 | |
| 9 | 3423-773 | PIN | 1 | $6.95 | |
| 11 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 12 | 3413-037 | IMPELLER/SHAFT | 1 | $79.95 | |
| 13 | 3423-629 | BOLT (6X30) | 1 | $3.71 | |
| 14 | 3423-630 | BOLT | 1 | $3.02 | |
| 15 | 3004-521 | O RING | 1 | $3.02 | |
| 16 | 3423-871 | CIRCLIP | 1 | $3.71 | |
| 17 | 3413-021 | GEAR,WATER PUMP DRIVEN | 1 | $71.95 |
