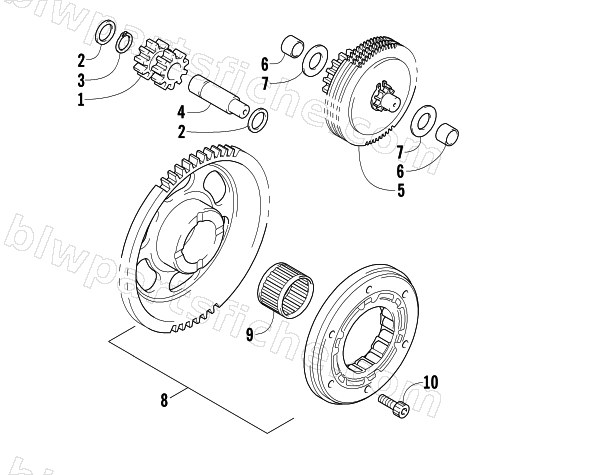

STARTER CLUTCH ASSEMBLY
2007 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-924 | GEAR, STARTER IDLE NO.1 | 1 | $91.95 | |
| 2 | 3423-699 | WASHER | 1 | $3.95 | |
| 3 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 4 | 3423-738 | PIN | 1 | $37.95 | |
| 5 | 3445-032 | LIMITER ASSY,STARTER IDLE GEAR | 1 | $369.95 | |
| 6 | 3402-125 | BUSH, LIMITER GEAR SHAFT | 1 | $50.95 | |
| 7 | 3423-103 | WASHER, THRUST, LIMITER GR SHAFT-M10X22 | 1 | $2.61 | |
| 8 | 3445-031 | CLUTCH SET,STARTER | 1 | $425.95 | |
| 9 | 3402-222 | BEARING,ROLLER,M25X31X19 | 1 | $62.95 | |
| 10 | 3423-226 | BOLT, OIL HOSE 6X16 | 1 | $2.95 |
