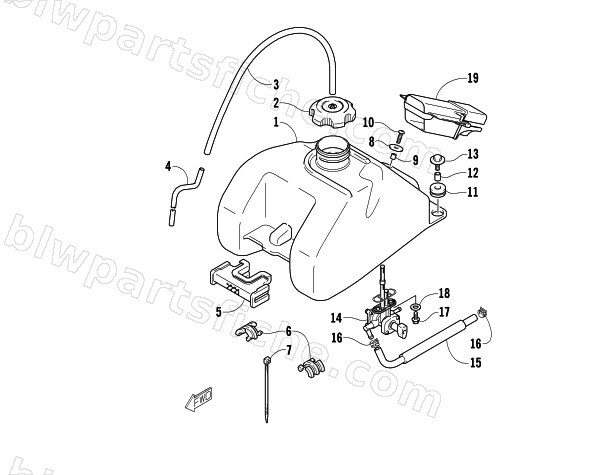

GAS TANK ASSEMBLY
2007 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3570-005 | TANK ASSY,FUEL | 1 | $447.95 | |
| 2 | 3470-018 | CAP ASSY,FUEL TANK FILLER | 1 | $79.95 | |
| 3 | 3470-022 | HOSE, BREATHER (L:600!290) | 1 | $20.95 | |
| 4 | 3470-021 | HOSE,VACUUM | 1 | $37.95 | |
| 5 | 3406-109 | CUSHION, FRONT | 1 | $48.95 | |
| 6 | 3406-110 | CUSHION, SIDE | 1 | $20.63 | |
| 7 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 8 | 3423-673 | WASHER, SEAT HOOK | 1 | $3.02 | |
| 9 | 3423-691 | SPACER | 1 | $4.95 | |
| 10 | 3423-859 | SCREW | 1 | $2.06 | |
| 11 | 3423-743 | CUSHION, REAR | 1 | $13.73 | |
| 12 | 3423-693 | SPACER | 1 | $4.40 | |
| 13 | 3423-655 | BOLT | 1 | $2.33 | |
| 14 | 3470-036 | COCK ASSY,FUEL | 1 | $252.95 | |
| 15 | 3470-037 | HOSE,FUEL | 1 | $74.95 | |
| 16 | 3423-722 | CLIP | 1 | $4.95 | |
| 17 | 3423-898 | BOLT,M6X16 | 1 | $3.02 | |
| 18 | 3006-599 | GASKET-660 L/C | 1 | $6.47 | |
| 19 | 3470-029 | COVER, CLEANER INLET DUCT | 1 | $62.95 |
