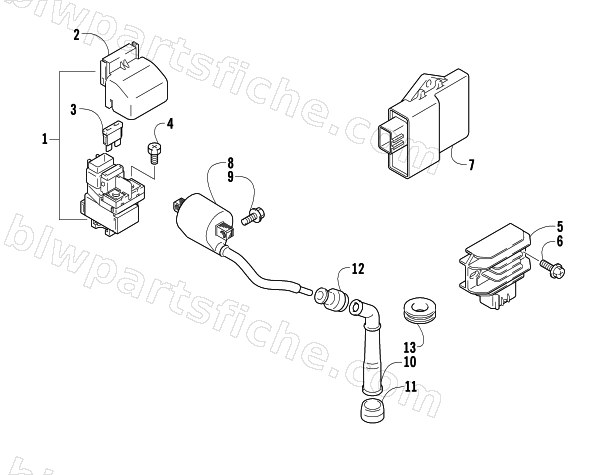

ELECTRICAL ASSEMBLY
2007 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3409-025 | RELAY ASSY,STARTING MOTOR | 1 | $169.95 | |
| 2 | 3409-038 | COVER, RELAY ASSY | 1 | $10.97 | |
| 3 | 3530-044 | FUSE (20A) | 1 | $4.40 | |
| 4 | 3423-020 | SCREW,6MM | 1 | $1.95 | |
| 5 | 3409-046 | RECTIFIER ASSY | 1 | $316.95 | |
| 6 | 0693-982 | BOLT, M6X20 | 1 | $4.29 | |
| 7 | 3409-043 | CDI UNIT | 1 | $854.95 | |
| 8 | 3530-027 | COIL, IGN | 1 | $187.95 | |
| 9 | 3007-392 | BOLT | 1 | $3.95 | |
| 10 | 3409-029 | CAP,SPARK PLUG | 1 | $66.95 | |
| 11 | 3409-031 | COVER,SPARK PLUG CAP | 1 | $10.97 | |
| 12 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 13 | 3409-030 | SEAL,SPARK PLUG CAP | 1 | $16.49 |
