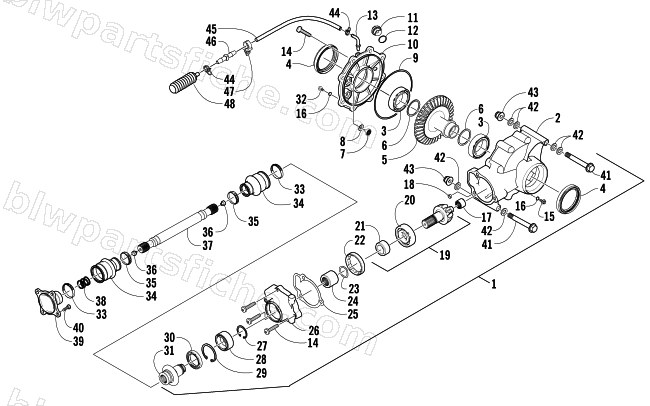

REAR DRIVE GEARCASE ASSEMBLY
2007 400 AUTOMATIC TRANSMISSION 4X4 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-078 | GEARCASE,REAR(4.0)-ASSY | 1 | $1,275.95 | |
| 2 | 0502-622 | HOUSING,GEAR CASE-REAR MACH | 1 | $248.95 | |
| 3 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 4 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 5 | 1402-245 | GEAR,REAR (36 TOOTH 4.0) | 1 | $357.95 | |
| 6 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 6 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 6 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 6 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 6 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 7 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 8 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 8 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 8 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 8 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 8 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 9 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 10 | 1502-082 | COVER,GEARCASE-REAR MACH | 1 | $180.95 | |
| 11 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 13 | 1402-102 | BARB, 90 DEGREE | 1 | $66.95 | |
| 14 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 15 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 16 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 17 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 18 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 19 | 0502-649 | PINION(9T 4.0)-ASSY | 1 | $196.95 | |
| 20 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 21 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 22 | 0402-331 | COLLAR,LOCKING (M64-1.5 LH) | 1 | $49.95 | |
| 23 | 0402-982 | WASHER,SPRING | 1 | $8.21 | |
| 24 | 0402-981 | COLLAR,SHAFT-SPLINED | 1 | $50.95 | |
| 25 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 26 | 0502-529 | HOUSING,PINION-MACH | 1 | $196.95 | |
| 27 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 28 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 29 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 30 | 1402-011 | SEAL | 1 | $5.51 | |
| 31 | 1502-085 | SHAFT,INPUT-ASSEMBLY | 1 | $90.95 | |
| 32 | 1402-211 | PLUG, OIL LEVEL | 1 | $20.63 | |
| 33 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 34 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 35 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 36 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 37 | 1402-092 | SHAFT, PROPELLER-REAR | 1 | $122.95 | |
| 38 | 1402-026 | SPRING | 1 | $1.92 | |
| 39 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 40 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 41 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 42 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 43 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 44 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 45 | 0410-049 | HOSE, VENT-GEARCASE | 1 | $30.95 | |
| 46 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 47 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 48 | 1402-620 | BLADDER,CASE | 1 | $12.35 |
