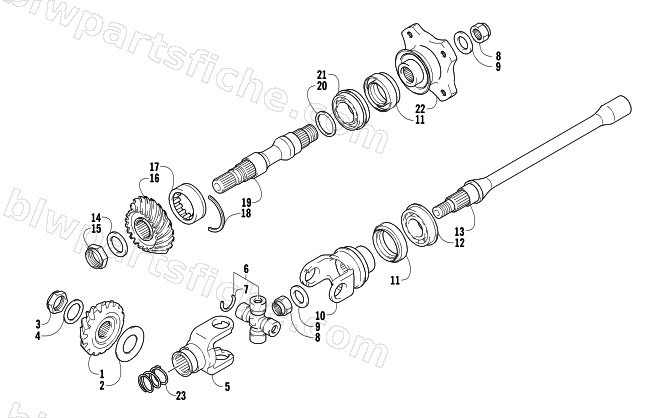

SECONDARY DRIVE ASSEMBLY
2007 400 AUTOMATIC TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-637 | GEAR, SEC DRIVE BEVEL | 1 | $292.95 | |
| 3 | 3423-023 | NUT 20MM | 1 | $4.54 | |
| 4 | 3005-372 | WASHER, PISTON PIN | 1 | $3.16 | |
| 5 | 3446-327 | YOKE,PROP SHAFT JOINT | 1 | $196.95 | |
| 6 | 3402-562 | JOINT SET, UNIVERSAL | 1 | $73.95 | |
| 7 | 3423-479 | CIRCLIP | 1 | $5.92 | |
| 8 | 3423-025 | NUT,16MM | 1 | $4.95 | |
| 9 | 3423-028 | WASHER,16MM | 1 | $5.95 | |
| 10 | 3402-742 | YOKE, FR DRIVE OUTPUT | 1 | $235.95 | |
| 11 | 3402-072 | OIL SEAL ,M34X52X9 | 1 | $23.39 | |
| 12 | 3402-558 | BEARING | 1 | $90.95 | |
| 14 | 3423-137 | WASHER, SEC DRIVEN GEAR-M22X36 | 1 | $6.34 | |
| 15 | 3423-136 | NUT, SEC DRIVEN GEAR,22MM | 1 | $19.25 | |
| 16 | 3402-638 | GEAR, SEC DRIVEN BEVEL | 1 | $398.95 | |
| 17 | 3402-515 | BEARING, SEC DRIVEN GEAR,M (30X50X17) | 1 | $79.95 | |
| 18 | 3423-072 | C RING,M50 | 1 | $5.78 | |
| 19 | 3402-639 | SHAFT, SEC DRIVEN OUTPUT RR | 1 | $350.95 | |
| 20 | 3402-017 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-018 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-019 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-020 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3403-217 | SHIM,25X34X0.8 | 1 | $5.92 | |
| 20 | 3402-022 | SHIM,25MM | 1 | $5.95 | |
| 20 | 3402-023 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3402-024 | SHIM,25MM | 1 | $5.92 | |
| 20 | 3423-421 | WASHER, SHIFT SHAFT (M25X34X1.0) | 1 | $5.51 | |
| 20 | 3402-028 | SHIM,25MM | 1 | $6.20 | |
| 20 | 3402-029 | SHIM,25MM | 1 | $6.47 | |
| 20 | 3402-030 | SHIM,25MM | 1 | $6.47 | |
| 20 | 3402-031 | SHIM,25MM | 1 | $6.47 | |
| 21 | 3403-210 | BEARING,REAR OUTPUT SHAFT RR | 1 | $106.95 | |
| 22 | 3402-514 | FLANGE, RR OUTPUT JOINT | 1 | $212.95 | |
| 23 | 1402-026 | SPRING | 1 | $1.92 |
