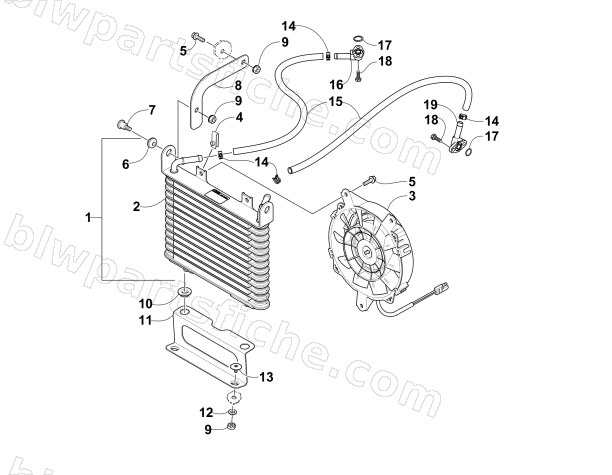

2007 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — OIL COOLER ASSEMBLY (VIN: V17T230317 and Above)
2007 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-144 | COOLER,OIL-ASSEMBLY | 1 | $567.95 | |
| 2 | 0413-146 | COOLER,OIL | 1 | $398.95 | |
| 3 | 0413-145 | FAN,COOLING-6" | 1 | $209.95 | |
| 4 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 5 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 6 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 7 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 8 | 0513-020 | BRKT,MTG UPPER-OIL COOLER-PTD | 1 | $10.97 | |
| 9 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 10 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 11 | 0513-021 | BRKT,MTG LOWER-OIL COOLER-PTD | 1 | $20.63 | |
| 12 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 13 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 14 | 0423-098 | CLAMP,HOSE(NORMA FBS 17-12) | 1 | $2.75 | |
| 15 | 0410-044 | HOSE,OIL-30 (0410-014 CTL) | 1 | $47.95 | |
| 16 | 0410-013 | FITTING,OIL - MACH | 1 | $58.95 | |
| 17 | 0423-089 | O-RING,OIL FITTING-1/2IDX11/16OD X 3/32 | 1 | $2.06 | |
| 18 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 19 | 0410-012 | FITTING,OIL ANGLED - MACH | 1 | $58.95 |
