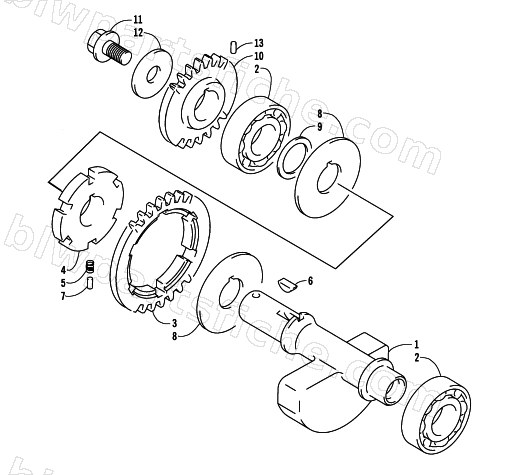

2007 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — CRANK BALANCER ASSEMBLY
2007 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-605 | BALANCER, CRANK | 1 | $244.95 | |
| 2 | 3402-553 | BEARING, M20 X 47 X 14 | 1 | $69.95 | |
| 3 | 3402-772 | GEAR, DRIVEN | 1 | $205.95 | |
| 4 | 3402-608 | RACE, CRANK BAL DRIVEN GEAR INNER | 1 | $79.95 | |
| 5 | 3402-090 | SPRING,COMPRESSION,M9 | 1 | $5.92 | |
| 6 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 7 | 3423-106 | PIN, CRK BAL DRIVEN GEAR,M4.5X9.5 | 1 | $6.34 | |
| 8 | 3423-441 | WASHER, CRK BAL DRIVEN GR, NO.1 | 1 | $6.75 | |
| 9 | 3423-446 | SHIM, (0.5) | 1 | $6.34 | |
| 10 | 3402-617 | GEAR, OIL PUMP DRIVE | 1 | $87.95 | |
| 11 | 3423-555 | BOLT, DRIVE GEAR | 1 | $4.95 | |
| 12 | 3423-401 | WASHER, DRIVE GEAR | 1 | $4.95 | |
| 13 | 3423-110 | PIN, DECOMP HOLDER | 1 | $3.57 |
