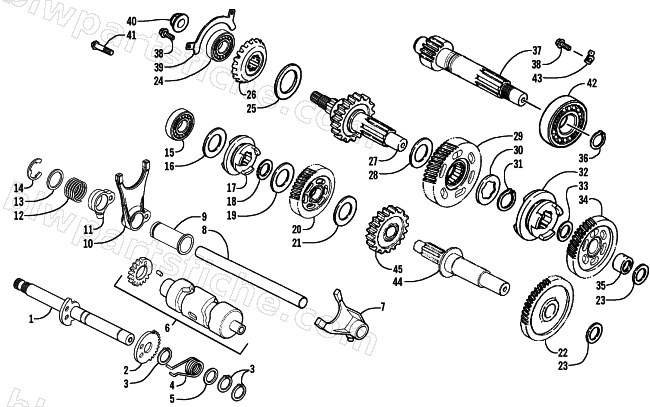

TRANSMISSION ASSEMBLY
2007 250 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-812 | SPINDLE COMP DRUM SHIFT | 1 | $47.95 | |
| 2 | 3303-815 | GEAR CHANGE HANDLE | 1 | $17.87 | |
| 3 | 3304-153 | E RING 12 | 1 | $1.92 | |
| 4 | 3303-813 | R/B 3305-818 | 1 | $3.95 | |
| 5 | 3304-036 | WASHER THRUST 14*28*2 | 1 | $1.50 | |
| 6 | 3305-552 | DRUM ASSY GEAR SHIFT | 1 | $187.95 | |
| 7 | 3303-805 | FORK L GEAR SHIFT | 1 | $112.95 | |
| 8 | 3303-806 | SHAFT GEAR SHIFT FORK GUIDE | 1 | $13.73 | |
| 9 | 3303-807 | SPRING FORK | 1 | $23.39 | |
| 10 | 3303-804 | FORK RIGHT GEAR SHIFT | 1 | $108.95 | |
| 11 | 3303-808 | GUIDE RIGHT FORK | 1 | $23.39 | |
| 12 | 3304-821 | SPRING-DRUM | 1 | $3.71 | |
| 13 | 3304-051 | DIA WASHER 17*22 | 1 | $1.37 | |
| 14 | 3304-154 | E RING 15 SPECIAL | 1 | $3.16 | |
| 15 | 3304-197 | BRG RADIAL BALL 6303 | 1 | $20.63 | |
| 16 | 3304-637 | WASHER THRUST 17.2MM | 1 | $1.50 | |
| 17 | 3305-555 | SHIFT FORWARD | 1 | $79.95 | |
| 18 | 3304-638 | CIR CLIP EX 22 | 1 | $1.78 | |
| 19 | 3304-046 | WASHER SPLINE 20MM | 1 | $2.33 | |
| 20 | 3304-621 | GEAR ASSY FORWARD | 1 | $140.95 | |
| 21 | 3305-553 | WASHER THRUST 22.2*33*2.6 | 1 | $3.02 | |
| 22 | 3303-793 | GEAR COUNTER | 1 | $79.95 | |
| 23 | 3305-554 | WASHER THRUST 20MM | 1 | $3.02 | |
| 24 | 3304-194 | BRG RADIAL BALL 6009 | 1 | $90.95 | |
| 25 | 3304-525 | SHIM DRIVE BEVEL GEAR A (0.6mm) | 1 | $5.37 | |
| 25 | 3304-526 | SHIM DRIVE BEVEL GEAR B (0.65 mm) | 1 | $5.37 | |
| 25 | 3304-527 | SHIM DRIVE BEVEL GEAR C (0.7 mm) | 1 | $5.37 | |
| 25 | 3304-528 | SHIM DRIVE BEVEL GEAR D (0.75 mm) | 1 | $5.37 | |
| 25 | 3304-529 | SHIM DRIVE BEVEL GEAR E (0.8 mm) | 1 | $5.37 | |
| 25 | 3304-530 | SHIM DRIVE BEVEL GEAR F (0.85 mm) | 1 | $5.37 | |
| 25 | 3304-531 | SHIM DRIVE BEVEL GEAR G (0.9 mm) | 1 | $5.37 | |
| 25 | 3304-532 | SHIM DRIVE BEVEL GEAR H (0.95 mm) | 1 | $5.37 | |
| 25 | 3304-533 | SHIM DRIVE BEVEL GEAR I (1.0 mm) | 1 | $5.37 | |
| 25 | 3304-534 | SHIM DRIVE BEVEL GEAR J (1.05 mm) | 1 | $5.37 | |
| 25 | 3304-535 | SHIM DRIVE BEVEL GEAR K (1.1 mm) | 1 | $5.37 | |
| 25 | 3304-536 | SHIM DRIVE BEVEL GEAR L (1.15 mm) | 1 | $5.37 | |
| 26 | 3303-801 | GEAR BEVEL DRIVE | 1 | $102.95 | |
| 27 | 3303-784 | SHAFT MAIN | 1 | $118.95 | |
| 28 | 3304-044 | WASHER THRUST 25MM | 1 | $2.06 | |
| 29 | 3304-622 | GEAR ASSY LOWER DRIVEN | 1 | $118.95 | |
| 30 | 3304-045 | WASHER SPLINE 25MM | 1 | $2.06 | |
| 31 | 3304-056 | SET RING 23MM | 1 | $2.33 | |
| 32 | 3305-556 | SHIFT REVERSE & LOWER | 1 | $100.95 | |
| 33 | 3304-043 | WASHER THRUST 30*20*3 | 1 | $2.61 | |
| 34 | 3303-797 | GEAR BACKWARD | 1 | $94.95 | |
| 35 | 3304-074 | BRG NEEDLE 20*26*16 | 1 | $23.39 | |
| 36 | 3304-147 | CIR CLIP EX 25MM | 1 | $1.64 | |
| 37 | 3303-791 | SHAFT DRIVE | 1 | $129.95 | |
| 38 | 3304-005 | BOLT SPECIAL 6*10 96600-08010 N.C. | 1 | $1.50 | |
| 39 | 3304-041 | PLATE BRG HOLD | 1 | $6.20 | |
| 40 | 3304-033 | NUT 18MM | 1 | $4.54 | |
| 41 | 3304-112 | R/B 3307-085 | 1 | $2.95 | |
| 42 | 3304-067 | BRG BALL 6305 | 1 | $33.95 | |
| 43 | 3304-040 | PLATE BRG HOLDER | 1 | $3.02 | |
| 44 | 3303-792 | SHAFT COUNTER | 1 | $122.95 | |
| 45 | 3303-800 | GEAR LOWER DRIVE | 1 | $64.95 |
