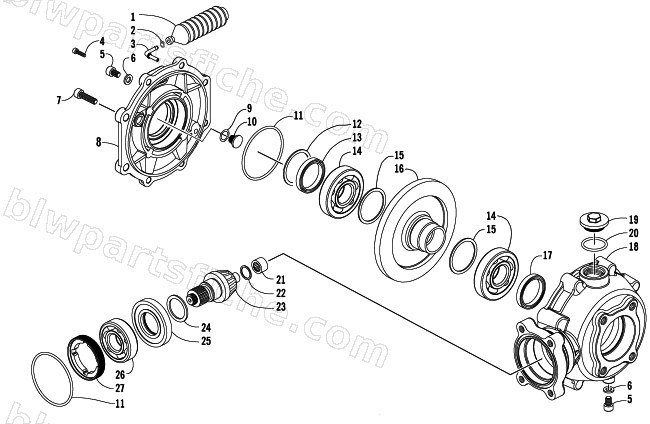

FINAL DRIVE ASSEMBLY
2007 250 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-170 | BREATHER TUBE RR GEAR ASSY | 1 | $12.35 | |
| 2 | 3304-669 | CLIP D10.5 TUBE | 1 | $4.13 | |
| 3 | 3303-877 | JOINT BREATHER | 1 | $6.34 | |
| 4 | 3304-177 | BOLT FLANGE 8*30MM | 1 | $2.06 | |
| 5 | 3303-365 | R/B 3304-544 | 1 | $0.95 | |
| 6 | 3303-591 | WASHER 8MM | 1 | $0.81 | |
| 7 | 3304-178 | BOLT FLANGE 10*35 | 1 | $2.33 | |
| 8 | 3303-873 | R SIDE CASE RR FINAL | 1 | $122.95 | |
| 9 | 3303-879 | SHIM STOPPER PIN | 1 | $4.13 | |
| 10 | 3303-878 | PIN RING GEAR STOPPER | 1 | $12.35 | |
| 11 | 3304-095 | O-RING 74.4*3.1 | 1 | $5.78 | |
| 12 | 3304-670 | O-RING 31.7*3.5 | 1 | $3.02 | |
| 13 | 3304-092 | OIL SEAL 44*60*7 | 1 | $16.49 | |
| 14 | 3304-194 | BRG RADIAL BALL 6009 | 1 | $90.95 | |
| 15 | 3305-311 | SHIM RING GEAR, 46 x 54 x 1.47 | 1 | $10.97 | |
| 15 | 3303-881 | SHIM RING GEAR, 46 x 54 x 1.5 | 1 | $10.97 | |
| 15 | 3305-310 | SHIM RING GEAR, 46 x 54 x 1.53 | 1 | $10.97 | |
| 16 | 3303-876 | GEAR RING | 1 | $212.95 | |
| 17 | 3304-093 | OIL SEAL 42*62*7 | 1 | $17.87 | |
| 18 | 3303-872 | L SIDE CASE RR FINAL | 1 | $220.95 | |
| 19 | 3303-021 | HOLE CAP TAPPET ADJUSTING **9000 C.97.09 | 1 | $16.49 | |
| 20 | 3304-096 | O-RING 30.8MM | 1 | $1.78 | |
| 21 | 3304-076 | BRG NEEDLE 14*20*12 | 1 | $30.95 | |
| 22 | 3303-874 | RING STOPPER | 1 | $2.61 | |
| 23 | 3303-875 | GEAR PINION | 1 | $169.95 | |
| 24 | 3305-313 | SHIM PINION GEAR, 31 x 40 x 1.97 | 1 | $10.97 | |
| 24 | 3305-312 | SHIM PINION GEAR, 31 x 40 x 2.0 | 1 | $10.97 | |
| 24 | 3303-880 | SHIM PINION GEAR, 31 x 40 x 2.03 | 1 | $10.97 | |
| 25 | 3304-085 | OIL SEAL 35*70*10 | 1 | $20.63 | |
| 26 | 3304-196 | BRG RADIAL BALL 6206 | 1 | $47.95 | |
| 27 | 3304-027 | NUT LOCK 65MM | 1 | $16.49 |
