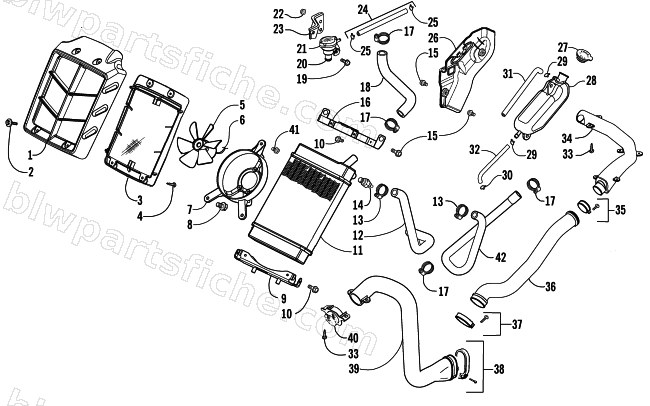

COOLING ASSEMBLY
2007 250 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-743 | R/B 3305-973 | 1 | $18.95 | |
| 2 | 3303-263 | BOLT WASH 5*12 **9000 C.97.07.26. | 1 | $0.81 | |
| 3 | 3303-744 | GRID RADIATOR | 1 | $20.63 | |
| 4 | 3304-123 | SCREW WASHER 4MM | 1 | $0.81 | |
| 5 | 3303-741 | FAN COOLING | 1 | $16.49 | |
| 6 | 3303-742 | MOTOR ASSY FAN | 1 | $275.95 | |
| 7 | 3303-739 | SHROUD COMP | 1 | $33.95 | |
| 8 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 9 | 3303-984 | STAY RADIATOR BOTTOM | 1 | $20.63 | |
| 10 | 3304-116 | R/B 3304-652 | 1 | $0.85 | |
| 11 | 3303-737 | RADIATOR COMP | 1 | $405.95 | |
| 12 | 3303-759 | HOSE WATER D RADIATOR-ENG | 1 | $17.87 | |
| 13 | 3304-164 | CLIP TUBE | 1 | $1.78 | |
| 14 | 3303-862 | SW ASSY THERMO | 1 | $74.95 | |
| 15 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 16 | 3303-983 | STAY RADIATOR UP | 1 | $20.63 | |
| 17 | 3304-165 | CLIP WATER HOSE | 1 | $3.71 | |
| 18 | 3303-761 | HOSE WATER G RADIATOR-PRESSURE | 1 | $16.49 | |
| 19 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 20 | 3303-738 | UNIT RADIATOR | 1 | $47.95 | |
| 21 | 3303-748 | CAP COMP | 1 | $26.95 | |
| 22 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 23 | 3303-740 | STAY UNIT RADIATOR | 1 | $5.37 | |
| 24 | 3304-066 | TUBE ASSY WATER PUMP-PRESSURE | 1 | $5.37 | |
| 25 | 3304-161 | CLIP B7 TUBE | 1 | $1.37 | |
| 26 | 3303-993 | PROTECTOR MASTER CYLINDER | 1 | $13.95 | |
| 27 | 3303-749 | CAP RESERVE TANK | 1 | $3.71 | |
| 28 | 3304-253 | TANK RESERVE | 1 | $30.95 | |
| 29 | 3304-163 | CLIP C11 TUBE | 1 | $1.78 | |
| 30 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 31 | 3303-745 | HOSE ASSY DRAIN | 1 | $16.49 | |
| 32 | 3303-746 | HOSE ASSY RESERVE TANK-PRESSURE VALVE | 1 | $30.95 | |
| 33 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 34 | 3303-637 | DUCT C L COVER | 1 | $37.95 | |
| 35 | 3303-709 | BAND CONNECT TUBE | 1 | $4.95 | |
| 36 | 3303-633 | DUCT B L COVER | 1 | $30.95 | |
| 37 | 3303-636 | BAND L COVER | 1 | $5.92 | |
| 38 | 3303-635 | BAND L COVER DUCT | 1 | $5.37 | |
| 39 | 3303-634 | DUCT A L COVER | 1 | $64.95 | |
| 40 | 3303-640 | ELEMENT DUCT A L COVER | 1 | $13.73 | |
| 41 | 3303-320 | SCREW WASHER 4*14 **D19KT-006-1900 | 1 | $0.81 | |
| 42 | 3303-760 | HOSE WATER ENG-RADIATOR | 1 | $16.49 |
