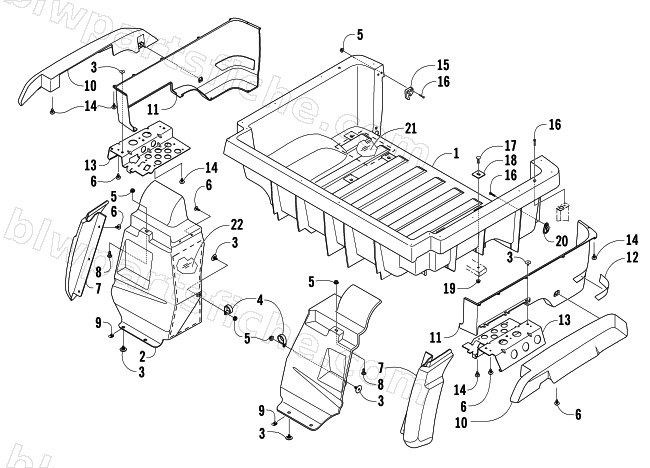

2006 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — REAR BODY PANEL AND CARGO BOX ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 2 | 2406-070 | PANEL,SPLASH-REAR-RH | 1 | $110.95 | |
| 2 | 2406-071 | PANEL,SPLASH-REAR-LH | 1 | $104.95 | |
| 3 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 4 | 0423-403 | CLAMP,TUBE-1.125"(ARDEN COV 1909 ZI) | 1 | $12.35 | |
| 5 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1406-810 | FENDER,REAR-LOWER-RH-MARSH GREEN | 1 | $72.95 | |
| 7 | 1406-809 | FENDER,REAR-LOWER-LH-MARSH GREEN | 1 | $72.95 | |
| 7 | 1406-795 | FENDER,REAR-LOWER-LH-RED | 1 | $80.95 | |
| 7 | 1406-802 | FENDER,REAR-LOWER-RH-LIME GREEN | 1 | $72.95 | |
| 7 | 1406-801 | FENDER,REAR-LOWER-LH-LIME GREEN | 1 | $72.95 | |
| 8 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 2506-660 | FENDER,REAR UPPER RH-MARSH-ASSY | 1 | $122.95 | |
| 10 | 2506-661 | FENDER,REAR UPPER LH-MARSH-ASSY | 1 | $118.95 | |
| 10 | 2506-678 | FENDER,REAR UPPER-RH-RED-ASSY | 1 | $122.95 | |
| 10 | 2506-679 | FENDER,REAR UPPER-LH-RED-ASSY | 1 | $118.95 | |
| 10 | 2506-680 | FENDER,REAR UPPER-RH-LIME-ASSY | 1 | $140.95 | |
| 10 | 2506-681 | FENDER,REAR UPPER-LH-LIME-ASSY | 1 | $135.95 | |
| 11 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 11 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 12 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 12 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 13 | 1506-776 | BRACKET,FENDER SUPPORT-RH BLACK | 1 | $114.95 | |
| 13 | 1506-777 | BRACKET,FENDER SUPPORT-LH BLACK | 1 | $130.95 | |
| 14 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 15 | 1406-928 | STRIKER,TAILGATE - LH | 1 | $11.95 | |
| 15 | 1406-929 | STRIKER,TAILGATE - RH | 1 | $12.35 | |
| 16 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 17 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 18 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 19 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 21 | 0412-391 | SHIELD,HEAT-BOX | 1 | $6.89 | |
| 22 | 0412-392 | SHIELD,HEAT-FENDER | 1 | $5.95 |
