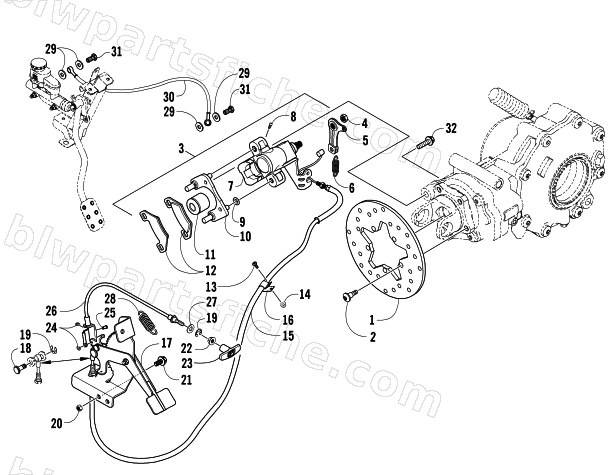

2006 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — REAR AND PARKING BRAKE ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-547 | ROTOR - MACHINED | 1 | $196.95 | |
| 2 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 3 | 1502-143 | CALIPER,MECHANICAL/HYDRAULIC | 1 | $398.95 | |
| 4 | 0502-988 | NUT,PARKING BRAKE ACTUATOR | 1 | $5.51 | |
| 5 | 0502-984 | KIT,LEVER ACTUATOR | 1 | $48.95 | |
| 6 | 0502-985 | SPRING,PARKING BRAKE | 1 | $13.73 | |
| 8 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 10 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 12 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 13 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 14 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 15 | 0487-036 | CABLE,PARKING BRAKE | 1 | $100.95 | |
| 17 | 1502-309 | PARKING BRAKE SUBASSY W/O CABLE | 1 | $263.95 | |
| 19 | 0423-668 | E-CLIP,7.0 MM | 1 | $1.09 | |
| 20 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 22 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 23 | 1502-024 | HANDLE | 1 | $20.63 | |
| 24 | 0423-667 | E-CLIP,4.0 MM | 1 | $0.68 | |
| 26 | 0487-064 | CABLE,BRAKE RELEASE | 1 | $69.95 | |
| 27 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 28 | 1502-026 | SPRING,A | 1 | $64.95 | |
| 29 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 30 | 1402-388 | HOSE,BRAKE-REAR | 1 | $148.95 | |
| 31 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 32 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 |
