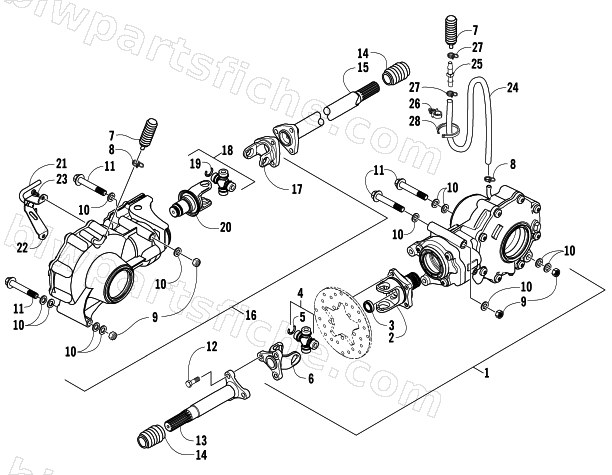

2006 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — DRIVE TRAIN ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-738 | GEARCASE,REAR(4.0)-ASSY | 1 | $1,324.95 | |
| 2 | 0502-765 | SHAFT,INPUT-ASSY(YOKE) | 1 | $148.95 | |
| 4 | 0402-944 | CROSS, UNIVERSAL (25mm) - SET | 1 | $30.95 | |
| 6 | 0502-331 | YOKE/CROSS-ASSY | 1 | $129.95 | |
| 7 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 8 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 9 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 10 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 11 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 12 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 13 | 0502-857 | SHAFT,DRIVE-REAR | 1 | $169.95 | |
| 14 | 0402-966 | BOOT,PROP SHAFT (LONG) | 1 | $13.73 | |
| 15 | 0502-855 | SHAFT,PROPELLER-BLACK | 1 | $174.95 | |
| 16 | 0502-737 | GEARCASE,FRONT(4.0)-ASSY | 1 | $2,211.95 | |
| 17 | 1402-369 | YOKE,FLANGE-COMPANION(20mm) | 1 | $69.95 | |
| 18 | 1402-164 | CROSS, UNIVERSAL(20mm)-SET | 1 | $22.01 | |
| 20 | 0502-517 | YOKE, FRONT END - ASSEMBLY | 1 | $90.95 | |
| 21 | 0487-037 | CABLE | 1 | $102.95 | |
| 22 | 0502-942 | PLATE,CABLE-BLACK | 1 | $17.95 | |
| 23 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 24 | 0410-049 | HOSE, VENT-GEARCASE | 1 | $30.95 | |
| 25 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 26 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
