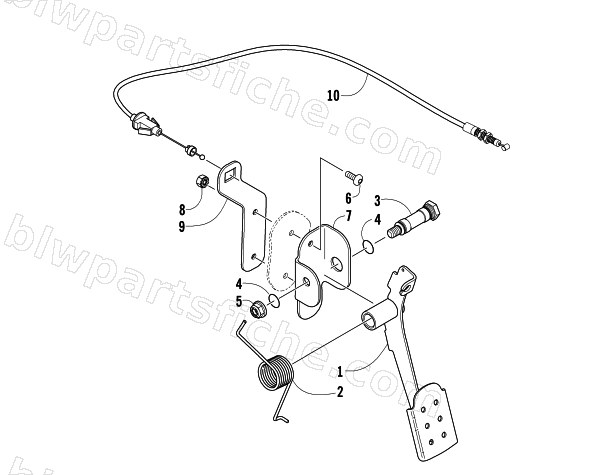

ACCELERATOR ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-974 | ACCELERATOR PEDAL-PAINTED | 1 | $36.95 | |
| 2 | 0405-233 | SPRING,TORSION | 1 | $8.95 | |
| 3 | 0402-872 | AXLE-FOOTBRAKE | 1 | $37.95 | |
| 4 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 5 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 7 | 0502-991 | BRACKET,ACCELERATOR-PAINTED | 1 | $20.63 | |
| 8 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 9 | 0502-990 | BRACKET,THROTTLE CABLE-PAINTED | 1 | $20.95 | |
| 10 | 0487-056 | KIT, THROTTLE CABLE (PROWLER) | 1 | $100.95 |
