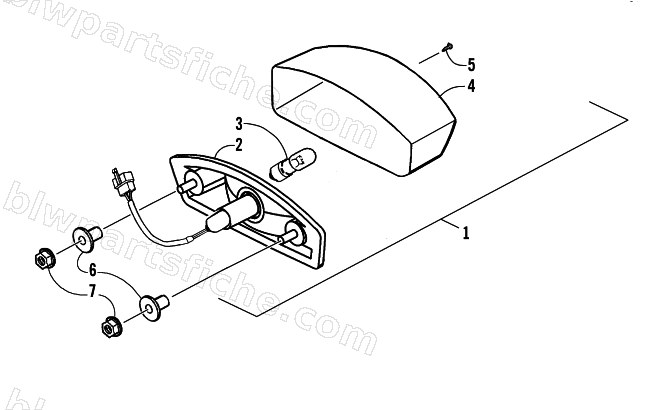

2006 Arctic Cat 90 DVX — TAILLIGHT ASSEMBLY
2006 90 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-420 | LIGHT ASSY TAIL | 1 | $74.95 | |
| 2 | 3303-422 | BASE COMP TAIL LIGHT | 1 | $47.95 | |
| 3 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 4 | 3303-421 | LENS TAIL LIGHT | 1 | $47.95 | |
| 5 | 3304-537 | TAPPING SCREW M4X35L | 1 | $2.33 | |
| 6 | 3303-226 | COLLAR FR FENDER | 1 | $1.64 | |
| 7 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 |
