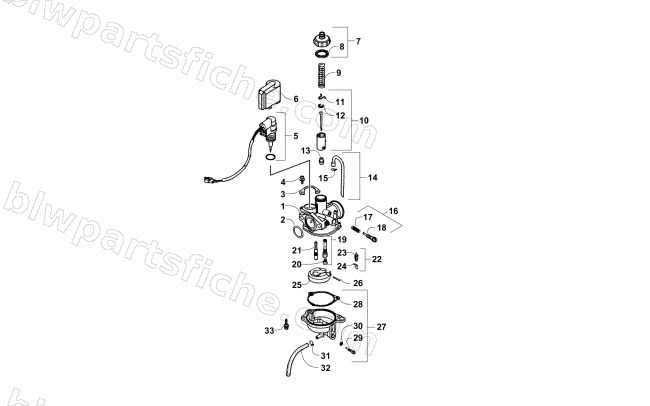

CARBURETOR ASSEMBLY
2006 90 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3303-405 | CARBURETOR ASSY (90 DVX/UTILITY) | 1 | $408.95 | |
| 2 | 3304-488 | O-RING | 1 | $1.92 | |
| 3 | 3304-471 | SET PLATE | 1 | $1.92 | |
| 4 | 5507-117 | SCREW | 1 | $1.23 | |
| 5 | 3304-470 | AUTO BY-STARTER ASSY | 1 | $140.95 | |
| 6 | 3304-469 | HOLDER CAP | 1 | $2.61 | |
| 7 | 3304-462 | TOP SET | 1 | $37.95 | |
| 8 | 3304-463 | TOP GASKET | 1 | $4.13 | |
| 9 | 3304-464 | COMPR SPRING | 1 | $2.61 | |
| 10 | 3306-905 | THROTTLE VALVE ASSY (90cc) | 1 | $118.95 | |
| 11 | 3304-465 | NEEDLE CLIP PLATE | 1 | $4.13 | |
| 12 | 3304-466 | BAR CLIP | 1 | $1.92 | |
| 13 | 3304-468 | NEEDLE JET | 1 | $47.95 | |
| 14 | 3304-472 | RUBBER PIPE ASSY | 1 | $10.97 | |
| 15 | 3304-474 | TUBE CLIP | 1 | $1.64 | |
| 16 | 3304-477 | STOP SCREW | 1 | $4.13 | |
| 17 | 3304-232 | COMPR SPG | 1 | $0.95 | |
| 18 | 3304-478 | STOP SCREW | 1 | $3.95 | |
| 19 | 3304-480 | NEEDLE JET HOLDER ASSY | 1 | $40.95 | |
| 20 | 3304-481 | JET (M.J) | 1 | $25.95 | |
| 21 | 3304-489 | JET (S.J) | 1 | $20.63 | |
| 22 | 3304-490 | FLOAT VALVE ASSY | 1 | $23.39 | |
| 23 | 3306-752 | FLOAT VALVE | 1 | $20.63 | |
| 24 | 3304-484 | CLIP | 1 | $4.13 | |
| 25 | 3304-491 | FLOAT COMP | 1 | $58.95 | |
| 26 | 3304-485 | FLOAT ARM PIN | 1 | $1.92 | |
| 27 | 3304-486 | FLOAT CHAMBER BODY ASSY | 1 | $94.95 | |
| 28 | 3305-569 | GASKET,FLOAT CHAMBER | 1 | $6.20 | |
| 29 | 3304-243 | DRAIN SCREW PAN | 1 | $5.37 | |
| 30 | 3304-239 | O-RING | 1 | $1.78 | |
| 31 | 3304-452 | TUBE CLIP | 1 | $1.37 | |
| 32 | 3305-248 | TUBE,DRAIN | 1 | $4.54 | |
| 33 | 3303-320 | SCREW WASHER 4*14 **D19KT-006-1900 | 1 | $0.81 |
