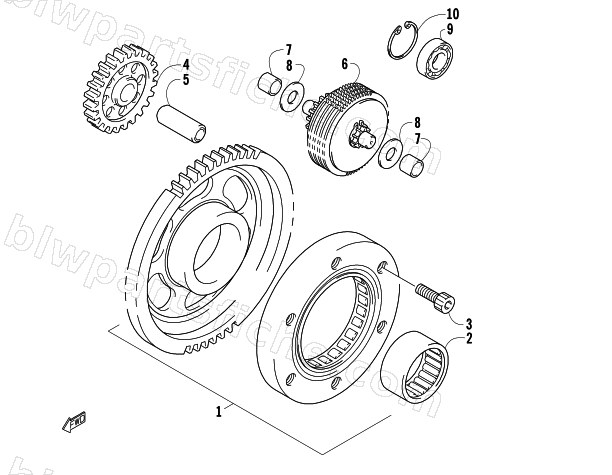

2006 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 FIS SE — STARTER CLUTCH ASSEMBLY
2006 700 AUTOMATIC TRANSMISSION 4X4 FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-089 | CLUTCH SET,STARTER | 1 | $454.95 | |
| 2 | 3403-090 | BEARING,35X45X20 | 1 | $79.95 | |
| 3 | 3423-509 | BOLT | 1 | $2.61 | |
| 4 | 3403-091 | GEAR,STARTER IDLE NO.2 | 1 | $118.95 | |
| 5 | 3423-805 | PIN,STARTER IDLE GEAR NO.2 | 1 | $20.63 | |
| 6 | 3403-092 | LIMITER ASSEMBLY,STARTER IDLE GEAR | 1 | $331.95 | |
| 7 | 3423-806 | BUSH,LIMITER GEAR SHAFT | 1 | $12.35 | |
| 8 | 3423-103 | WASHER, THRUST, LIMITER GR SHAFT-M10X22 | 1 | $2.61 | |
| 9 | 3402-043 | BEARING,BALL,M12X28X8 | 1 | $41.95 | |
| 10 | 3423-807 | CIRCLIP | 1 | $5.37 |
