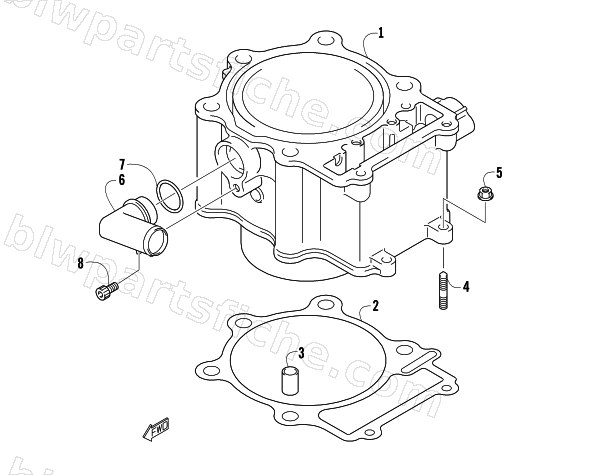

CYLINDER ASSEMBLY
2006 700 AUTOMATIC TRANSMISSION 4X4 FIS SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-214 | CYLINDER | 1 | $1,332.95 | |
| 2 | 3403-062 | GASKET,CYLINDER | 1 | $37.95 | |
| 3 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 4 | 3007-465 | BOLT,STUD | 1 | $2.75 | |
| 5 | 3007-373 | NUT | 1 | $3.16 | |
| 6 | 3413-040 | UNION,WATER HOSE | 1 | $62.95 | |
| 7 | 3423-058 | O RING, D:2.7, ID:21.4 | 1 | $4.40 | |
| 8 | 3423-882 | BOLT,UNION-6X16 | 1 | $3.30 |
