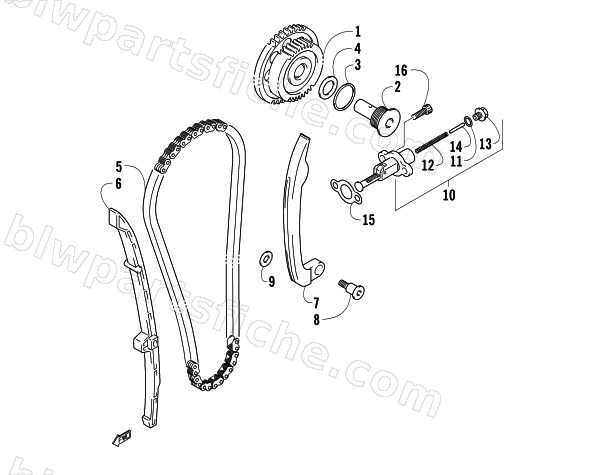

CAM CHAIN ASSEMBLY
2006 700 AUTOMATIC TRANSMISSION 4X4 FIS SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-104 | GEAR,CAM CHAIN ID | 1 | $220.95 | |
| 2 | 3403-105 | SHAFT,CAM CHAIN IDLER | 1 | $87.95 | |
| 3 | 3403-106 | GASKET,IDLER SHAFT | 1 | $13.73 | |
| 4 | 3403-107 | SHIM,CAM CHAIN IDLER,T:0.9 | 1 | $5.92 | |
| 4 | 3403-108 | SHIM,CAM CHAIN IDLER,T:1.0 | 1 | $5.92 | |
| 4 | 3403-109 | SHIM,CAM CHAIN IDLER,T:1.1 | 1 | $5.92 | |
| 4 | 3403-110 | SHIM,CAM CHAIN IDLER,T:1.2 | 1 | $5.92 | |
| 4 | 3403-111 | SHIM,CAM CHAIN IDLER,T:1.2 | 1 | $5.92 | |
| 4 | 3403-112 | SHIM,CAM CHAIN IDLER,T:1.4 | 1 | $5.92 | |
| 5 | 3403-113 | CHAIN,CAMSHAFT DRIVE | 1 | $180.95 | |
| 6 | 3403-114 | GUIDE,CAM CHAIN | 1 | $82.95 | |
| 7 | 3403-115 | TENSIONER,CAM CHAIN | 1 | $100.95 | |
| 8 | 3423-810 | BOLT | 1 | $6.34 | |
| 9 | 3423-811 | WASHER | 1 | $2.95 | |
| 10 | 3402-283 | ADJUSTER ASSY, TENSIONER | 1 | $169.95 | |
| 11 | 3423-286 | O RING | 1 | $8.21 | |
| 12 | 3402-284 | SPRING | 1 | $9.59 | |
| 13 | 3402-285 | PLUG | 1 | $37.95 | |
| 14 | 3402-286 | BAR | 1 | $6.95 | |
| 15 | 3402-287 | GASKET,TENSIONER ADJUSTER | 1 | $4.95 | |
| 16 | 3007-674 | BOLT-6X20 | 1 | $3.85 |
