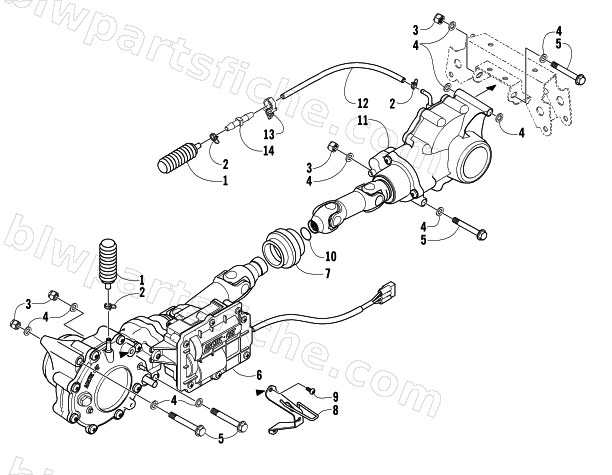

DRIVE TRAIN ASSEMBLY
2006 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 2 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 3 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 6 | 0502-752 | GEARCASE,FRONT(4.0)-ASSY(650) | 1 | $2,531.95 | |
| 7 | 0402-967 | BOOT,PROP SHAFT (SHORT) | 1 | $13.95 | |
| 8 | 0502-500 | PLATE,CABLE-BLACK | 1 | $21.95 | |
| 9 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 10 | 1402-203 | O-RING | 1 | $3.16 | |
| 11 | 0502-767 | GEARCASE,REAR(4.0)-ASSY | 1 | $1,583.95 | |
| 12 | 0410-049 | HOSE, VENT-GEARCASE | 1 | $30.95 | |
| 13 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 14 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 |
