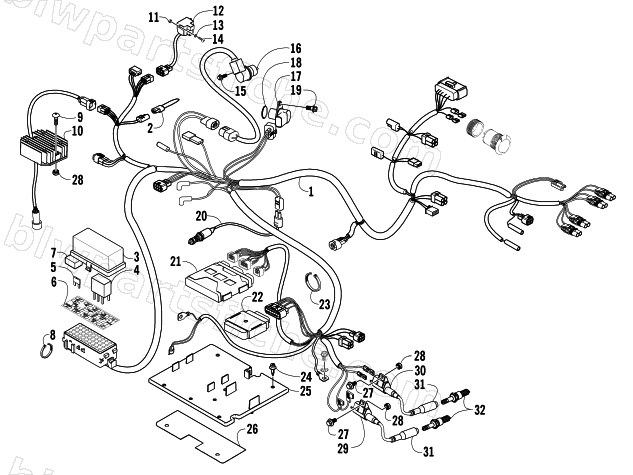

2006 Arctic Cat 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS CA — WIRING HARNESS ASSEMBLY
2006 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-188 | HARNESS/DIA,MAIN 06 650 V2 & LE | 1 | $929.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 5 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 5 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 5 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 6 | 0411-903 | DECAL,PDM (650 V2) | 1 | $64.95 | |
| 7 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 8 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 10 | 0430-046 | REGULATOR,VOLTAGE(650 V-2) | 1 | $151.95 | |
| 11 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 12 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 13 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 14 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 15 | 3201-141 | BOLT-FLANGED-SMALL | 1 | $4.95 | |
| 16 | 3201-191 | SENSOR,REVERSE | 1 | $158.95 | |
| 17 | 3201-190 | SENSOR,SPEED | 1 | $187.95 | |
| 18 | 3201-343 | RING-O | 1 | $3.95 | |
| 19 | 3201-036 | BOLT,FLANGED-SMALL | 1 | $6.95 | |
| 20 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 21 | 3201-039 | IGNITER (CDI) | 1 | $793.95 | |
| 22 | 3201-470 | ECU | 1 | $761.95 | |
| 23 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 24 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 25 | 1406-697 | TRAY,ELECTRICAL (FIS II V2) | 1 | $26.95 | |
| 26 | 0412-290 | SHIELD,HEAT (PSA) | 1 | $41.95 | |
| 27 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 28 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 29 | 3201-011 | COIL,IGNITION-REAR | 1 | $97.95 | |
| 30 | 3201-010 | COIL,IGNITION-FRONT | 1 | $108.95 | |
| 31 | 3201-012 | CAP,SPARK PLUG | 1 | $52.95 | |
| 32 | 0217-708 | SPARK PLUG, NGK-CR7E | 1 | $10.97 |
