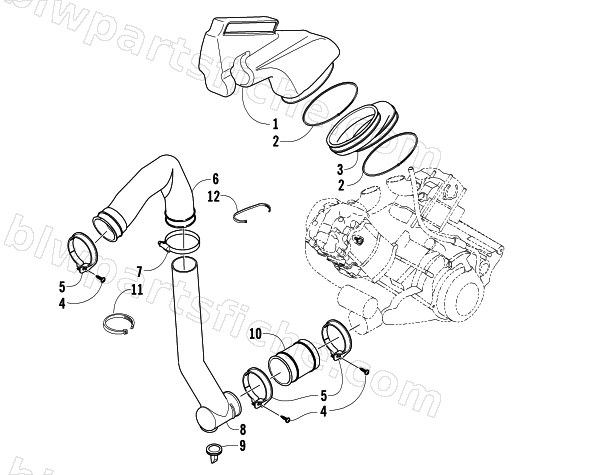

2006 Arctic Cat 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS CA — CASE/BELT COOLING ASSEMBLY
2006 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3201-038 | CLAMP | 1 | $20.95 | |
| 3 | 0413-083 | BOOT,AIR OUT | 1 | $29.95 | |
| 4 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 5 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 6 | 0413-092 | BOOT,AIR IN-BELT COOLING | 1 | $58.95 | |
| 7 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 8 | 0513-010 | DUCT,AIR IN-ROUTED | 1 | $47.95 | |
| 9 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 10 | 0413-085 | BOOT,AIR IN | 1 | $30.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
