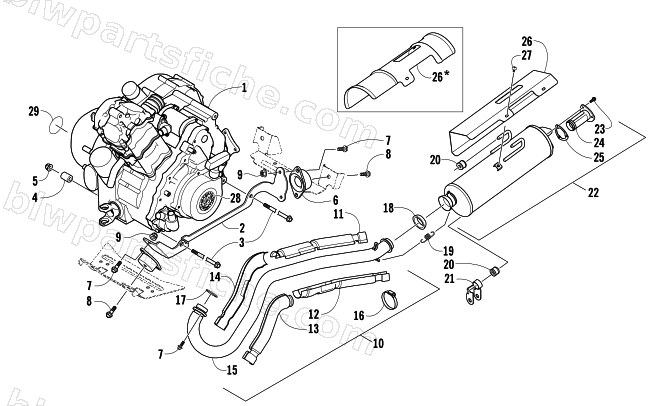

2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE — ENGINE AND EXHAUST
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0437-057 | KIT,ENGINE 650 H1 W/BUSHINGS | 1 | $5,474.95 | |
| 2 | 1506-740 | BRACKET,ENGINE-RH-BLACK | 1 | $64.95 | |
| 2 | 1506-741 | BRACKET,ENGINE-LH-BLACK | 1 | $64.95 | |
| 3 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 4 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 5 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 6 | 2406-065 | MOUNT,RUBBER-ENGINE | 1 | $66.95 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 8408-012 | SCREW,CAP-HFH M10X1.25X12 CL8.8 Z&Y | 1 | $12.35 | |
| 9 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 10 | 0512-345 | PIPE,EXHAUST-ASSEMBLY | 1 | $292.95 | |
| 11 | 0412-350 | SHIELD,EXHAUST PIPE | 1 | $30.95 | |
| 12 | 0412-339 | SHIELD,EXHAUST | 1 | $30.95 | |
| 13 | 0412-349 | SHIELD,EXHAUST PIPE | 1 | $34.95 | |
| 14 | 0412-348 | SHIELD,EXHAUST PIPE | 1 | $48.95 | |
| 15 | 0512-274 | PIPE,EXHAUST-BLACK | 1 | $160.95 | |
| 15 | 0512-344 | PIPE,EXHAUST-BLACK | 1 | $199.95 | |
| 16 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 17 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 18 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 19 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 20 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 21 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 22 | 0512-355 | MUFFLER-PAINTED | 1 | $509.95 | |
| 23 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 24 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 25 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 26 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 27 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 28 | 1411-176 | DECAL,"DURAMATIC" - ENGINE | 1 | $23.39 |
