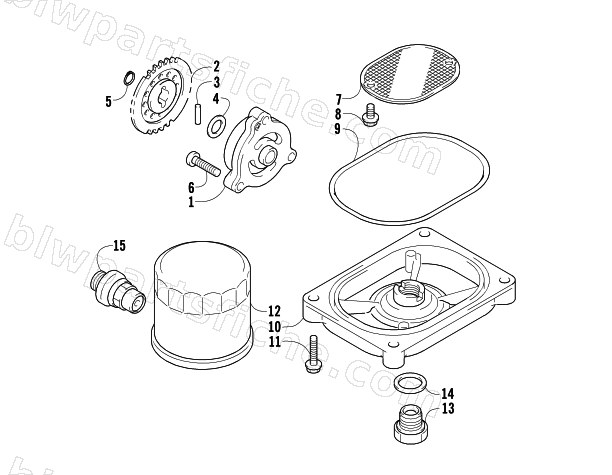

2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA — OIL FILTER/PUMP ASSEMBLY
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0812-023 | PUMP, OIL LOW FLOW ASSY | 1 | $100.95 | |
| 2 | 0812-083 | R/B 0812-094 | 1 | $59.95 | |
| 3 | 0829-009 | PIN (4 X 16) | 1 | $2.06 | |
| 4 | 0828-007 | SHIM, 10 x 18 x .57.8x.5 | 1 | $16.49 | |
| 5 | 0831-002 | RING, EXTERNAL RETAINING - DSH-10 | 1 | $0.40 | |
| 6 | 0826-039 | SCREW,MACH-TSPH M6X1X25 W/ THD LOCK | 1 | $1.23 | |
| 7 | 0812-057 | STRAINER,OIL | 1 | $4.40 | |
| 8 | 0826-040 | SCREW,MACH-TSPH M5 X0.8X12 W/ WASHERS | 1 | $1.78 | |
| 9 | 0830-023 | GASKET, MOLDED-OIL STRAINER CAP | 1 | $9.59 | |
| 10 | 0812-053 | CAP,OIL SUMP | 1 | $50.95 | |
| 11 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 12 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 13 | 0812-006 | PLUG, DRAIN MAGNETIC | 1 | $19.25 | |
| 14 | 0830-017 | GASKET, METAL, COMPRESSION | 1 | $5.09 | |
| 15 | 0812-007 | VALVE, ASSEMBLY - OIL RELIEF | 1 | $85.95 |
