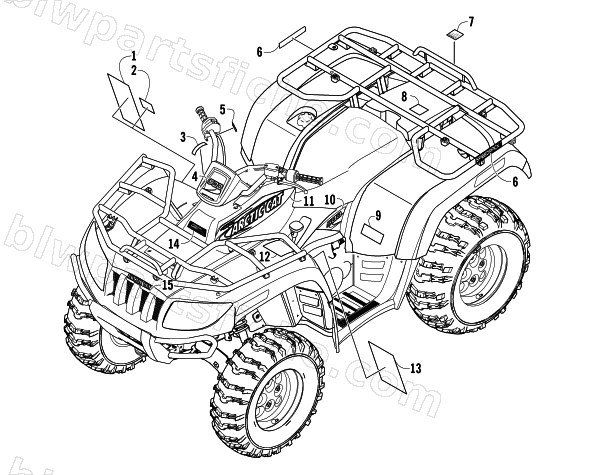

2006 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 FIS — DECALS
2006 500 AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 2 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 3 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 4 | 1411-075 | DECAL,GRAPHIC-POD(500-MARSH GREEN) | 1 | $114.95 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 7 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 8 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 9 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 10 | 1411-032 | DECAL,GRAPHIC-SIDE LWR RH(500 MARSH GRN) | 1 | $15.11 | |
| 10 | 1411-033 | DECAL,GRAPHIC-SIDE LWR LH(500 MARSH GRN) | 1 | $17.87 | |
| 11 | 1411-301 | DECAL,GRAPHIC UPPER RH/LH (A-BODY CAMO) | 1 | $42.95 | |
| 11 | 1411-016 | DECAL,GRAPHIC-SIDE UPPER RH-MARSH GREEN | 1 | $42.95 | |
| 11 | 1411-017 | DECAL,GRAPHIC-SIDE UPPER LH-MARSH GREEN | 1 | $46.95 | |
| 12 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 13 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 14 | 1411-303 | DECAL,GRAPHIC FRONT('06 500 CAMO) | 1 | $6.47 | |
| 14 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 15 | 0411-839 | DECAL,GRAPHIC-FRONT(MARSH GREEN) | 1 | $148.95 |
