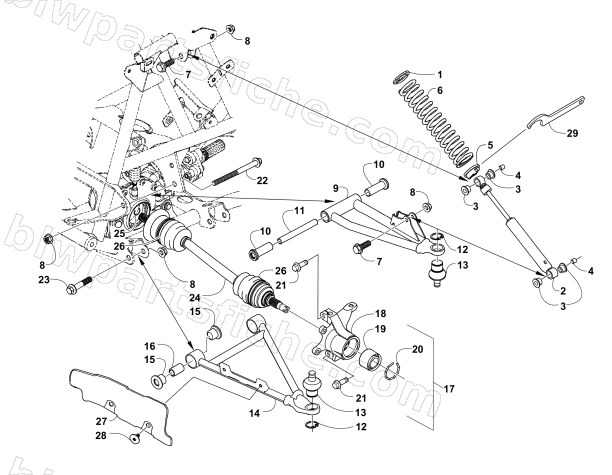

FRONT SUSPENSION ASSEMBLY
2006 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 0403-127 | SHOCK ABSORBER-FRONT (UB) | 1 | $118.95 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 5 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 6 | 0403-146 | SPRING,COIL-PLAT(200LB/IN X 13" HT) | 1 | $66.95 | |
| 7 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 9 | 0503-420 | A-ARM,FRONT UPPER RH-PLATINUM-ASSY | 1 | $227.95 | |
| 9 | 0503-421 | A-ARM,FRONT UPPER LH-PLATINUM-ASSY | 1 | $227.95 | |
| 10 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 11 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 12 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 13 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 14 | 0503-268 | A-ARM,FRONT LOWER RH-ASSY (PL) | 1 | $260.95 | |
| 14 | 0503-269 | A-ARM,FRONT LOWER LH-ASSY (PL) | 1 | $220.95 | |
| 15 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 16 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 17 | 0505-576 | R/B 0505-978 | 1 | $266.95 | |
| 17 | 0505-577 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 19 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 20 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 21 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 22 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 23 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 24 | 1502-874 | KIT,HALFSHAFT | 1 | $224.95 | |
| 24 | 1502-873 | KIT,HALFSHAFT-FRNT-LCK-DB CPLR-LG SEAL | 1 | $277.95 | |
| 25 | 0423-844 | CLIP,RETAINING-INBOARD | 1 | $1.23 | |
| 26 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 27 | 0441-752 | GUARD,BOOT-RH RED | 1 | $41.95 | |
| 27 | 0441-753 | GUARD,BOOT-LH RED | 1 | $38.95 | |
| 27 | 0441-756 | GUARD,BOOT-RH LIME GREEN | 1 | $100.95 | |
| 27 | 0441-757 | GUARD,BOOT-LH LIME GREEN | 1 | $100.95 | |
| 28 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 29 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
