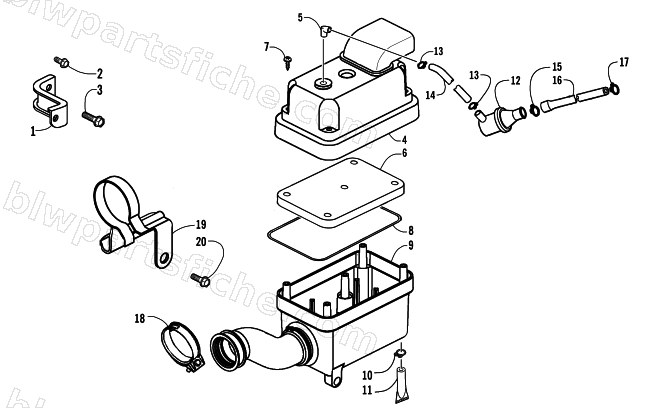

2006 Arctic Cat 50 UTILITY — AIR INTAKE ASSEMBLY
2006 50 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-005 | STAY A/C | 1 | $5.37 | |
| 2 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 3 | 3304-569 | BOLT FLANGE 6*25 | 1 | $0.81 | |
| 4 | 3303-062 | COVER ASSY AIR/C **(0) C.2004.11.17 | 1 | $58.95 | |
| 6 | 3303-060 | ELEMENT AIR/C | 1 | $16.49 | |
| 7 | 3305-450 | SCREW TAPPING 5X20(G) | 1 | $0.81 | |
| 8 | 3303-063 | SEAL AIR/C COVER | 1 | $5.92 | |
| 9 | 3305-314 | CASE ASSY AIR/C | 1 | $74.95 | |
| 10 | 3305-315 | CLAMP D23 | 1 | $6.20 | |
| 11 | 3304-168 | TUBE DRAIN | 1 | $10.97 | |
| 12 | 3303-064 | CATCH TANK ASSY | 1 | $20.63 | |
| 13 | 3303-350 | CLIP B12.5 TUBE | 1 | $0.95 | |
| 14 | 3303-002 | TUBE B | 1 | $4.40 | |
| 15 | 3303-052 | CLIP BREATHER TUBE | 1 | $1.78 | |
| 16 | 3303-001 | TUBE A | 1 | $9.59 | |
| 17 | 3303-352 | CLIP C9 TUBE | 1 | $1.50 | |
| 18 | 3303-288 | BAND CONN TUBE | 1 | $3.71 | |
| 19 | 3303-287 | BAND ASSY AIR/C TUBE | 1 | $8.21 | |
| 20 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 |
