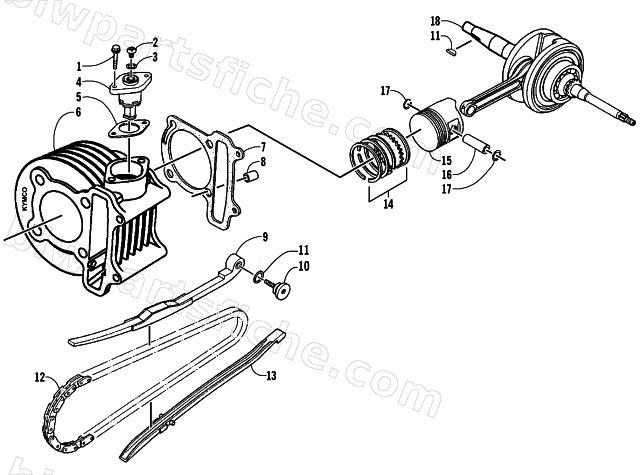

PISTON ASSEMBLY
2006 50 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-617 | R/B 3307-049 | 1 | $0.65 | |
| 2 | 3303-244 | SCREW PAN 6*6 **9000 C.97.07.26. | 1 | $0.81 | |
| 3 | 3304-100 | O-RING 1.5*9.5 | 1 | $1.78 | |
| 4 | 3303-499 | ADJUSTER CAM CHAIN | 1 | $54.95 | |
| 5 | 3303-501 | GASKET CAM CHAIN ADJ | 1 | $1.95 | |
| 6 | 3303-483 | CYLINDER COMP | 1 | $272.95 | |
| 7 | 3303-484 | GASKET CYLINDER | 1 | $4.95 | |
| 8 | 3303-594 | PIN DOWEL SPECIAL 8*14 | 1 | $1.78 | |
| 9 | 3303-498 | TENSIONER CAM CHAIN | 1 | $47.95 | |
| 10 | 3303-036 | PIVOT CAM CHAIN TENSIONER | 1 | $2.95 | |
| 11 | 3303-301 | O-RING 15.2*1.5 **0030 C.97.07.26. | 1 | $1.37 | |
| 12 | 3303-494 | CHAIN CAM | 1 | $87.95 | |
| 13 | 3303-503 | GUIDE COMP CAM CHAIN | 1 | $30.95 | |
| 14 | 3303-491 | RING SET PISTON | 1 | $45.95 | |
| 15 | 3303-492 | PISTON | 1 | $56.95 | |
| 16 | 3303-026 | PIN PISTON | 1 | $17.87 | |
| 17 | 3303-027 | CLIP PISTON PIN **0000 C.97.09.18. | 1 | $1.92 | |
| 18 | 3303-490 | CRANK SHAFT COMP | 1 | $398.95 | |
| 19 | 3303-290 | KEY WOODRUFF **0000-M1 C.99.07.07. | 1 | $2.61 |
