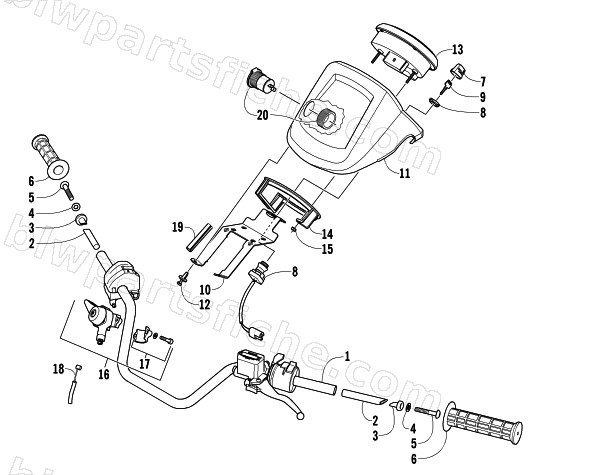

HANDLEBAR ASSEMBLY
2006 400 MANUAL TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-448 | HANDLEBAR,BLACK (LOCK) | 1 | $58.95 | |
| 2 | 0405-148 | R/B 3323-054 | 1 | $18.95 | |
| 3 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 6 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 7 | 0409-013 | COVER,KEY | 1 | $6.34 | |
| 8 | 3430-040 | SWITCH, IGN | 1 | $187.95 | |
| 9 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 9 | 3409-011 | KEY, BLANK ( D SERIES) | 1 | $30.95 | |
| 9 | 3409-012 | KEY, BLANK (E SERIES) | 1 | $30.95 | |
| 9 | 3409-013 | KEY, BLANK (F SERIES) | 1 | $30.95 | |
| 10 | 1506-578 | BRACKET,GAUGE-BLACK | 1 | $30.95 | |
| 11 | 0405-189 | POD,INSTRUMENT-MARSH GREEN(AC) | 1 | $97.95 | |
| 11 | 0405-188 | POD,INSTRUMENT-RED(AC) | 1 | $97.95 | |
| 11 | 0405-190 | POD,INSTRUMENT-LIME GREEN(AC) | 1 | $97.95 | |
| 12 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 13 | 0520-001 | GAUGE,A/D LCD (06 400M FIS) | 1 | $525.95 | |
| 14 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 15 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 16 | 0502-527 | LEVER, DIFFERENTIAL LOCK - ASSEMBLY | 1 | $136.95 | |
| 18 | 0487-050 | CABLE,DIFF LOCK | 1 | $39.95 | |
| 19 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 20 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 |
