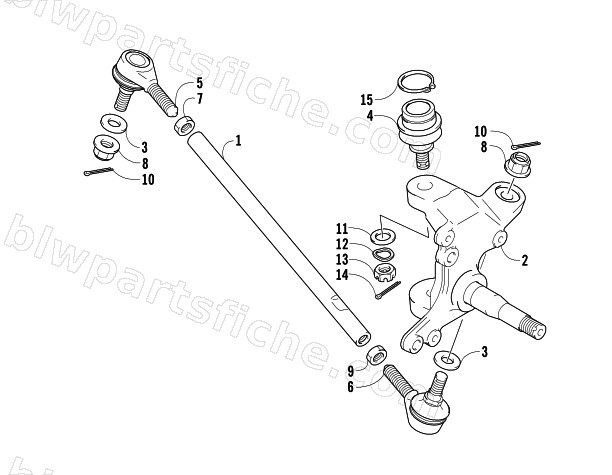

2006 Arctic Cat 400 DVX LIMITED EDITION — TIE ROD ASSEMBLY
2006 400 DVX LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3405-009 | TIE-ROD,STEERING | 1 | $47.95 | |
| 2 | 3405-043 | KNUCKLE,STEERING,R | 1 | $454.95 | |
| 2 | 3405-044 | KNUCKLE,STEERING,L | 1 | $454.95 | |
| 3 | 3423-681 | WASHER, ROD END LOCK | 1 | $5.95 | |
| 4 | 3405-060 | END,KNUCKLE STEERING | 1 | $114.95 | |
| 5 | 3405-008 | END COMP,ROD,L | 1 | $122.95 | |
| 6 | 3405-007 | END COMP,ROD,R | 1 | $118.95 | |
| 7 | 3423-664 | NUT, TIE ROD LH | 1 | $1.50 | |
| 8 | 3423-881 | NUT,ROD END | 1 | $3.95 | |
| 9 | 3423-665 | NUT, TIE ROD RH | 1 | $3.57 | |
| 10 | 3423-877 | COTTER PIN,ROD END | 1 | $1.95 | |
| 11 | 3007-716 | WASHER,12MM | 1 | $3.16 | |
| 15 | 3423-913 | CIRCLIP,FASTENER | 1 | $5.95 |
