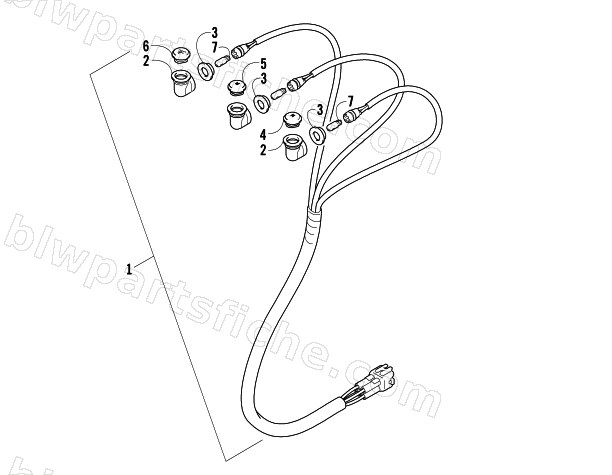

2006 Arctic Cat 400 DVX LIMITED EDITION — INDICATOR LIGHT ASSEMBLY
2006 400 DVX LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3420-008 | LAMP ASSY,PILOT | 1 | $187.95 | |
| 2 | 3409-034 | SOCKET | 1 | $10.97 | |
| 3 | 3409-039 | RING | 1 | $10.97 | |
| 4 | 3420-005 | LENS,NEUTRAL(GREEN) | 1 | $20.63 | |
| 5 | 3420-006 | LENS,REVERSE(RED) | 1 | $20.95 | |
| 6 | 3420-007 | LENS,WATER TEMP | 1 | $20.63 | |
| 7 | 3420-009 | BULB (14V,3W,T6.5) | 1 | $10.95 |
