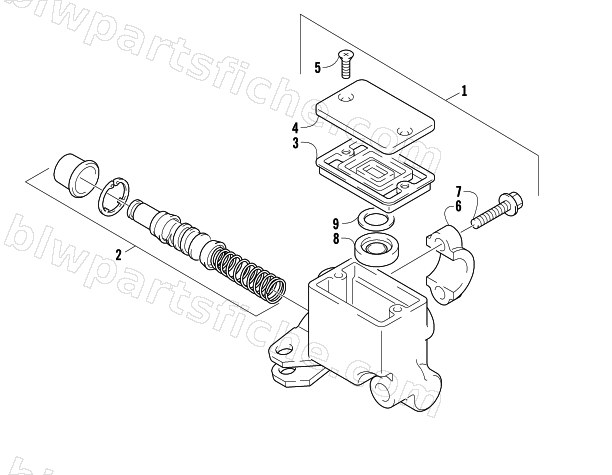

2006 Arctic Cat 400 DVX LIMITED EDITION — FRONT MASTER CYLINDER ASSEMBLY
2006 400 DVX LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-170 | CYLINDER ASSY,FRONT MASTER | 1 | $486.95 | |
| 2 | 3406-045 | PISTON/CUP SET | 1 | $90.95 | |
| 3 | 3406-048 | DIAPHRAGM | 1 | $23.39 | |
| 4 | 3406-088 | CAP | 1 | $35.95 | |
| 5 | 3423-598 | SCREW,RESERVOIR CAP | 1 | $2.61 | |
| 6 | 3406-049 | HOLDER,MASTER CYLINDER | 1 | $26.95 | |
| 7 | 3423-585 | BOLT,HOLDER,6X25 | 1 | $6.34 | |
| 8 | 3406-120 | SEPARATOR | 1 | $23.39 | |
| 9 | 3406-121 | PLATE | 1 | $5.92 |
