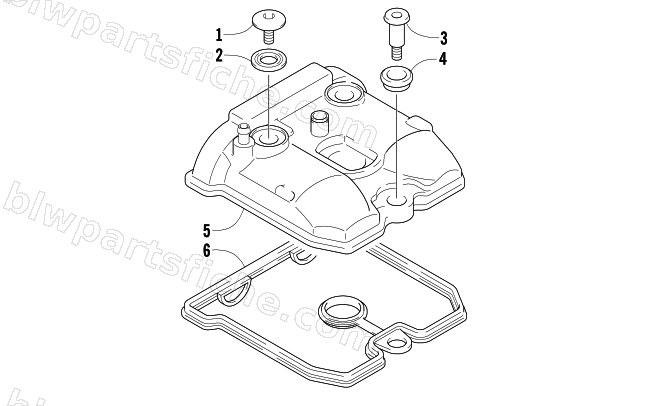

2006 Arctic Cat 400 DVX LIMITED EDITION — CYLINDER HEAD COVER
2006 400 DVX LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-646 | BOLT (7X17.5) | 1 | $5.65 | |
| 2 | 3423-680 | WASHER | 1 | $5.92 | |
| 3 | 3423-647 | BOLT (7X31) | 1 | $6.34 | |
| 4 | 3423-560 | CUSHION,HEAD COVER BOLT | 1 | $10.97 | |
| 5 | 3403-016 | COVER COMP,CYLINDER HEAD | 1 | $360.95 | |
| 6 | 3402-843 | GASKET,CYL HEAD COVER | 1 | $67.95 |
