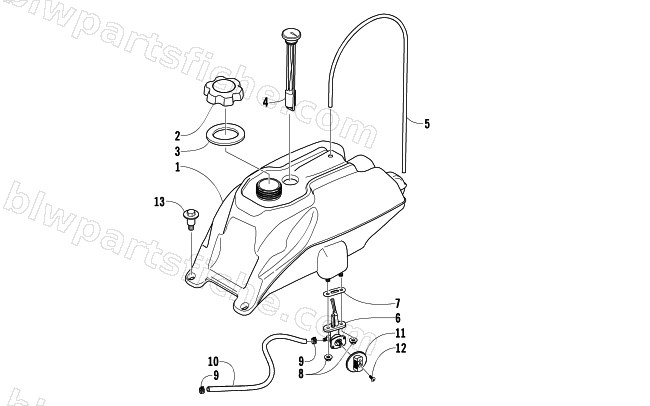

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 VP — GAS TANK ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 VP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-109 | TANK,FUEL-ASSEMBLY | 1 | $379.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 0570-086 | GAUGE,FUEL-W/SEAL | 1 | $79.95 | |
| 5 | 0470-416 | HOSE, VENT,-GAS TANK | 1 | $20.63 | |
| 6 | 0470-445 | VALVE, FUEL | 1 | $42.95 | |
| 8 | 0423-398 | NUT,LOCK M6X1.0 | 1 | $4.95 | |
| 9 | 0423-152 | CLAMP, HOSE,-SPRING (09-45334) | 1 | $0.54 | |
| 10 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 11 | 0470-408 | KNOB, GAS VALVE | 1 | $3.30 | |
| 12 | 0423-146 | SCREW,VALVE KNOB | 1 | $1.92 |
