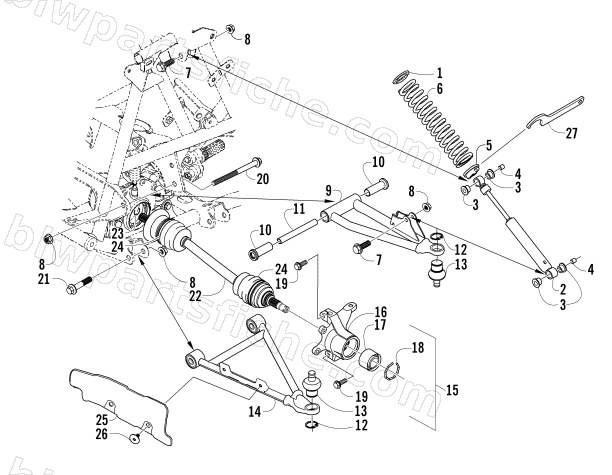

FRONT SUSPENSION ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 VP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 0403-144 | SHOCK ABSORBER-FRONT | 1 | $140.95 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 5 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 6 | 0403-103 | SPRING,FRONT | 1 | $213.95 | |
| 7 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 9 | 0503-192 | A-ARM, UPPER FRONT RH - FABRICATION | 1 | $227.95 | |
| 9 | 0503-193 | A-ARM, UPPER FRONT LH - FABRICATION | 1 | $227.95 | |
| 10 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 11 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 12 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 13 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 14 | 0503-292 | A-ARM,LOWER RH-FAB | 1 | $220.95 | |
| 14 | 0503-291 | A-ARM,LOWER LH-FAB | 1 | $220.95 | |
| 15 | 0505-576 | R/B 0505-978 | 1 | $266.95 | |
| 15 | 0505-577 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 17 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 18 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 19 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 20 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 21 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 22 | 1502-537 | HALFSHAFT(ACT FRONT) | 1 | $454.95 | |
| 23 | 0423-844 | CLIP,RETAINING-INBOARD | 1 | $1.23 | |
| 24 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 25 | 0406-944 | GUARD, BOOT-RH | 1 | $97.95 | |
| 25 | 0406-927 | GUARD,BOOT-LH | 1 | $97.95 | |
| 26 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 27 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
