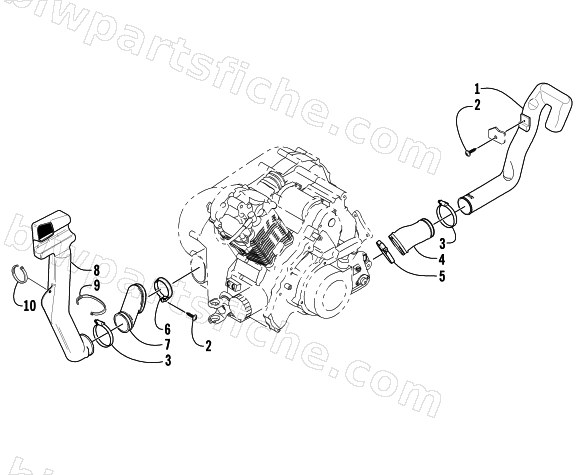

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 VP — CASE/BELT COOLING ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 VP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-061 | DUCT,BELT COOLING | 1 | $39.95 | |
| 2 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 3 | 3402-449 | CLAMP, DUCT FRONT | 1 | $20.63 | |
| 4 | 0413-060 | BOOT,BELT COOLING | 1 | $45.95 | |
| 5 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 6 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 7 | 0413-048 | BOOT, COOLING-BELT (FWD) | 1 | $32.95 | |
| 8 | 0413-042 | DUCT, COOLING-BELT (FWD) | 1 | $62.95 | |
| 9 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
