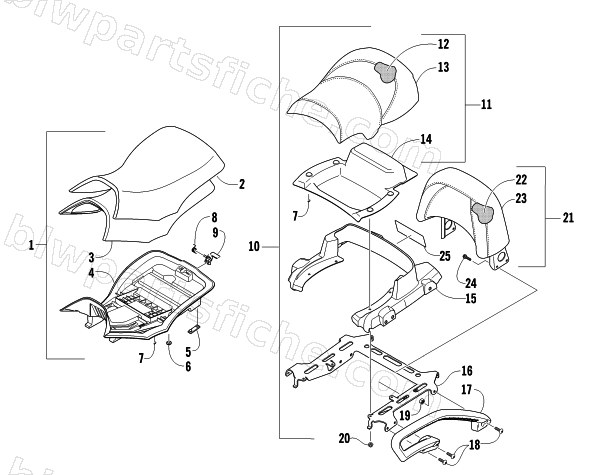

2006 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TRV — SEAT AND BACKREST ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-557 | SEAT,ASSEMBLY (H1) | 1 | $324.95 | |
| 2 | 1506-209 | COVER, SEAT | 1 | $129.95 | |
| 3 | 1506-208 | FOAM, SEAT-MOLDED | 1 | $120.95 | |
| 4 | 2416-826 | BASE,SEAT (H1) | 1 | $66.95 | |
| 5 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 8 | 1406-592 | SPRING,LATCH | 1 | $1.78 | |
| 9 | 1506-156 | LATCH,SEAT-WELDMENT | 1 | $30.95 | |
| 10 | 1506-938 | SEAT,AUX-ASSEMBLY | 1 | $599.95 | |
| 11 | 2506-064 | SEAT,AUX-SUB-ASSEMBLY | 1 | $292.95 | |
| 12 | 1506-816 | FOAM,SEAT-PASSENGER | 1 | $136.95 | |
| 13 | 1506-815 | COVER,SEAT-PASSENGER | 1 | $122.95 | |
| 14 | 2406-110 | BASE,SEAT-INNER | 1 | $58.95 | |
| 15 | 2406-044 | BASE,SEAT-FASCIA | 1 | $145.95 | |
| 16 | 1506-932 | BRACKET,SEAT SUPPORT-ASSY | 1 | $169.95 | |
| 17 | 2406-112 | HANDHOLD,PASSENGER-RH | 1 | $54.95 | |
| 17 | 2406-113 | HANDHOLD,PASSENGER-LH | 1 | $58.95 | |
| 18 | 0423-362 | SCREW, MACH-TSTH M8-1.25 X 30 EM- BLK | 1 | $8.21 | |
| 19 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 1506-939 | BACKREST,ASSEMBLY | 1 | $341.95 | |
| 22 | 1506-818 | FOAM,BACKREST | 1 | $169.95 | |
| 23 | 2516-141 | COVER,BACKREST | 1 | $118.95 | |
| 24 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 25 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 |
