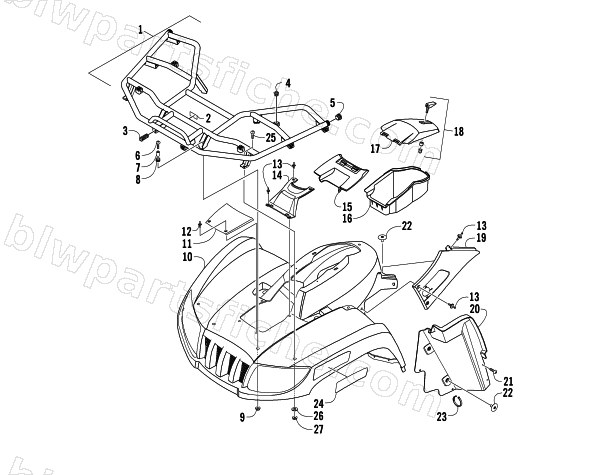

FRONT BODY PANEL ASSEMBLY
2006 400 AUTOMATIC TRANSMISSION 4X4 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0541-272 | RACK,FRONT FRAME-ASSEMBLY | 1 | $509.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 4 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 5 | 1441-049 | PLUG,PLASTIC(1.00" Round Tube) | 1 | $1.78 | |
| 6 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 7 | 0423-463 | SPACER,STEEL | 1 | $3.57 | |
| 8 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 9 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 10 | 0518-078 | FENDER,FRONT MARSH-ASSY | 1 | $539.95 | |
| 10 | 0518-076 | FENDER,FRONT RED-ASSY | 1 | $539.95 | |
| 10 | 0518-077 | FENDER,FRONT LIME-ASSY | 1 | $450.95 | |
| 11 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 12 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 13 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 14 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 15 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 16 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 17 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 18 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 19 | 1406-313 | KNEEPAD,RH-BLACK | 1 | $158.95 | |
| 19 | 1406-314 | KNEEPAD,LH-BLACK | 1 | $158.95 | |
| 20 | 1406-354 | PANEL, SPLASH - RH | 1 | $79.95 | |
| 20 | 2506-383 | PANEL,SPLASH-LH ASSEMBLY | 1 | $90.95 | |
| 21 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 22 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 23 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 24 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 24 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 25 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 26 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 27 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
